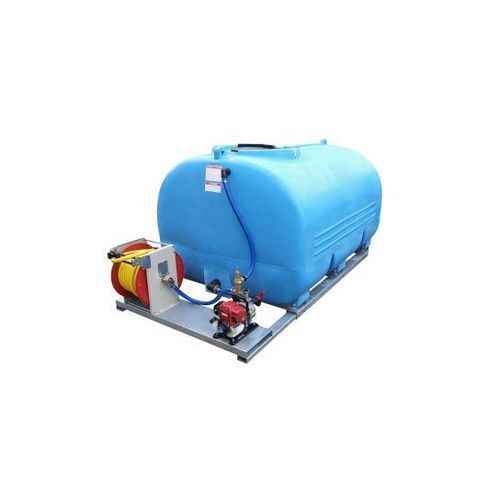

Chassis-mounted water bowser GPEAR5001-130

Description
Mobile irrigation unit with a 5000 L AQ5001H tank mounted on a galvanized steel underframe and fitted with a Honda petrol pump. Designed for watering plants, trees and green areas on construction sites and public spaces. Maximum transportable fluid density: 1.0 kg/L. Tank fitted for rest-drain and internal cleaning.

Components

• Galvanized steel underframe
• HDPE tank (food-grade, phthalate-free) with UV15 protection, algae-resistant
• Suction filter and overpressure valve with return to tank
• Manhole Ø455 mm for internal cleaning
• 6 m hose with nozzle (optional 20 m hose reel)

Pump

• Model: Honda WX10 with GX31 4‑stroke engine, 31 cc
• Flow: 120 L/min
• Pressure: 3.5 bar
• Self-priming pump
• Grain size: 5.70 mm
• Connection: DN25 (1”)
• Autonomy: approx. 1.2 h

Benefits

• Suitable for site watering and municipal green spaces
• Optional Ball Baffle system to reduce sloshing during transport
• Easy to lift and move when empty (lifting lugs)

Technical specifications

• Article number: GPEAR5001-130
• Capacity: 5000 L
• Dimensions (H x W x D): 1.530 m x 2.000 m x 3.000 m
• Weight: 310 kg
• Manhole: Ø 455 mm
• Connection: DN25
• Warranty: 5 years (tank), 1 year (accessories)
