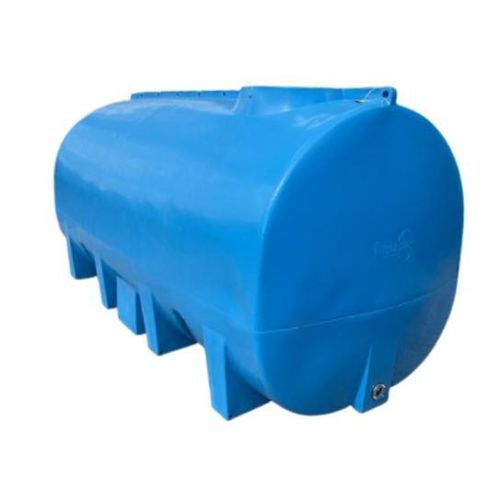

Water tank AQ13001H

liquid fertilizerUV-resistanttransport

Summary
AQUA 13000
Water transport tank 13,000 litres. Tank warranty: 5 years; parts warranty: 1 year.

Main features

• 3-inch stainless steel wall penetration
• DN80 stainless steel valve
• Cover and drain system entirely stainless steel
• Reinforced dome for improved resistance to internal pressure and external stresses
• Manhole for cleaning
• Anti-surge design (back spine) to reduce liquid movement and tractor wear
• Lifting rings for strap handling
• Versatile: can carry liquid fertilizer, molasses, brine… (up to a density of 1.4 kg/dm3)
• Compatible with any support (tipper or flatbed) thanks to compact footprint
• Fixing axles available as an option
• UV15 protection (higher resistance than standard UV8)

Safety and warranty notes
Maximum permitted speed: 25 km/h. For tank volumes ≥ 8,000 L, installation of Ball Baffles is mandatory if operating above 25 km/h. Use of a tank ≥ 8,000 L above 25 km/h without Ball Baffles voids warranty for related damage.

Technical sheet
Height (m) : 2120
Depth (m) : 4190
Diameter (m) : 2000
Capacity (L) : 13000

Characteristics / technical specifications

• Product reference: AQ13001H
• Model: AQUA 13000
• Brand: DURAPLAS
• Capacity: 13 000 L
• Height: 2120 m
• Depth: 4190 m
• Diameter: 2000 m
• Equipment: 3" stainless wall penetration, DN80 stainless valve, stainless cover and drain
• UV protection: UV15
• Maximum acceptable density: 1.4 kg/dm3
• Warranty: tank 5 years, parts 1 year
