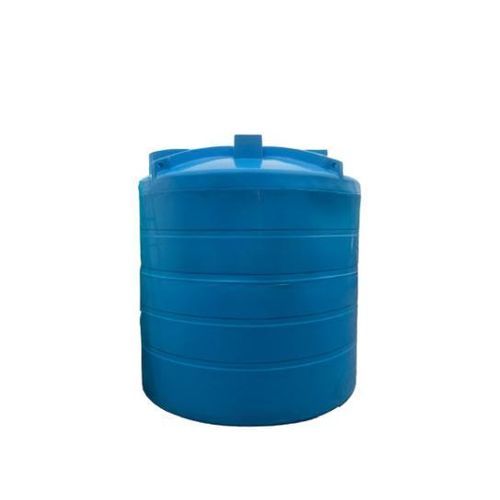

Water tank AQ5001V

overheadverticalpolyethylene

Description
Above-ground vertical water tank with 5000 L capacity. Supplied with pre-mounted bulkhead, PVC female valve DN50 (with Teflon), professional drain fitted and manhole Ø 462 mm.

General characteristics
Capacity 5000 L. Dimensions Ø 1.89 m x H 2.28 m. Lid mounted on an independent rigid base ensuring watertightness. Lid equipped with integrated vent for correct ventilation. Cylindrical design for even load distribution and optimal stability. Smooth interior surface for easy cleaning and reduced particle adhesion.

Protection and material
Manufactured in opaque polyethylene to limit algae and bacterial growth. UV15 protection, offering enhanced resistance to impact and UV compared with standard UV8 polyethylenes.

Pumping options

• Electric pump: 230 V (single-phase)
• Electric pump: 380 V (three-phase)
• Honda petrol engine pump: flow rate 700 L/min

Instructions for use

• Install on a concrete surface according to the installation specifications.
• Suitable for liquids with a density up to 1 kg/dm³.
• Confirm bulkhead position and size before delivery.

Technical sheet (excerpt)
Height (m): 2.28
Weight (kg): 140
Diameter (m): 1.89
Capacity (L): 5000

Technical characteristics / specifications

• Product reference: AQ5001V
• Commercial series: PREMIUM
• Nominal capacity: 5000 L
• Dimensions: Ø 1.89 m x H 2.28 m
• Empty weight: 140 kg
• Material: opaque polyethylene (PE)
• UV protection: UV15
• Supplied equipment: pre-mounted bulkhead, PVC female valve DN50 (with Teflon), professional drain fitted, manhole Ø 462 mm
• Pre-mounted flange: DN80 with reducer and ball valve DN50 (plastic)
• Pump options: electric pump 230 V, electric pump 380 V, Honda petrol pump (700 L/min)
• Installation condition: place on a concrete surface
• Use: water storage (suitable for liquids up to 1 kg/dm³)
