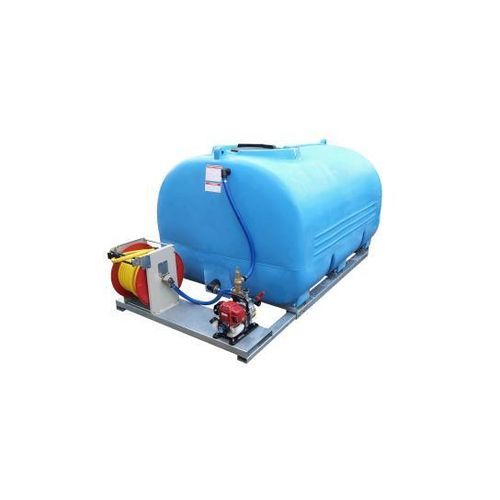

Chassis-mounted water bowser GPEAR3001-130

Overview
3000-litre water tank mounted on a galvanised chassis with a Honda motor pump for mobile irrigation of plants and trees. Food-grade HDPE tank with UV protection and easy residual drainage. Maximum transported liquid density: 1.0 kg/L.

Included items

• Galvanised chassis
• HDPE tank (3000 L)
• Suction filter
• Overpressure valve with return to tank
• 6 m hose with nozzle (20 m hose reel manual or powered optional)

Honda motor pump

• Max flow: 130 L/min (7.8 m3/h)
• Engine: Honda 4‑stroke GX 31 cc
• Runtime: approx. 1.2 h
• Working pressure: 3.5 bar
• Self-priming pump
• Maximum particle size: 5.70 mm
• Connection diameter: 1”

Characteristics / technical specifications

• Reference: GPEAR3001-130
• Height (m): 1.200
• Width (m): 1.540
• Depth (m): 2.570
• Weight (kg): 270
• Key: A
• Capacity (L): 3000
• Colour: light blue (RAL 5012)
• Maximum transported liquid density: 1.0 kg/L
• Tank material: food-grade polyethylene (HDPE), plasticiser-free, UV15 protection, algae-resistant
• Subframe: galvanised steel
• Hose: 6 m with nozzle (optional 20 m reel)
• Working pressure: 3.5 bar
• Connection: DN25
• Manhole: Ø 455 mm for internal cleaning
• Suction filter and overpressure valve with return to tank
• Anti-slosh pockets in tank and 2 lifting eyes for handling when empty
• Options: 20 m hose reel; 150 BallBaffles for slosh reduction
• Warranty: 5 years on tank, 1 year on accessories
