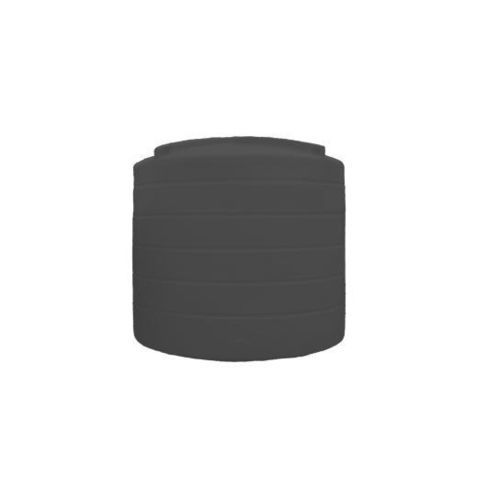

Water tank AQ9000V-B

verticalpolyethyleneUV-resistant

Description
Vertical water storage tank BASIC, capacity 9000 L. Supplied with female PVC DN50 valve with PTFE tape, professional drain assembly and manhole Ø 462 mm for internal access and cleaning.

Key features

• Opaque polyethylene body preventing algae growth
• High-definition UV treatment for extended service life and improved water quality
• Cover equipped with a vent
• Ribbed design for increased rigidity
• Handling rings for moving and installing the tank empty without a crane
• Factory-mounted bulkhead fitted by professionals to ensure optimal sealing
• Optional drain diameter
• Optional float switch
• Cleaning facilitated by the manhole
• Made in France
• Tank warranty: 5 years; accessories warranty: 1 year

Instructions for use

• Install on a concrete base according to the project specifications
• Suitable for liquids with a maximum density of 1.2 kg/L
• Before delivery, verify the position and dimensions of the bulkhead

Characteristics / Technical specifications

• Article number: AQ9000V-B
• Capacity: 9000 L
• Material: UV-treated, opaque polyethylene
• Manhole: Ø 462 mm
• Pre-mounted flange: DN50 with DN50 ball valve
• Maximum stored liquid density: 1.2 kg/L
• Color: Black (RAL 9005)
• Height (m): 2.300
• Diameter (m): 2.450
• Weight (kg): 200
• Key: A
• Warranty: 5 years (tank), 1 year (accessories)
