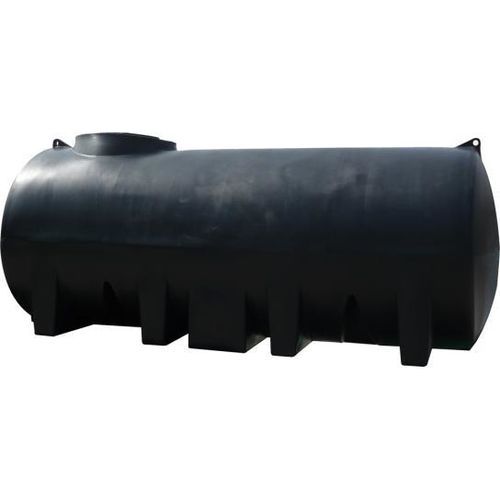

Water tank AQ10001H-B

liquid fertilizerstainless steelUV-resistant

Presentation
AQUA 10000
Water transport tank 10,000 litres.
Equipped with a 3" stainless steel bulkhead fitting and Ø80 stainless steel valve.

Description

• Tank warranty: 3 years; parts warranty: 1 year.
• Transport with confidence thanks to a range among the widest and lowest on the market, enabling maximum safety during transit.
• Handling rings for strap passage facilitate manoeuvring the empty tank.
• Versatile: accepts various liquids (liquid fertilizers, molasses, brine…) up to a density of 1.4 kg/dm3.
• Fits any support (tipping body or flatbed) thanks to its compact footprint.
• Dorsal ridge and secure axle-fixation system (fixation axles optional) ensure maximum stability during use; installation is reliable, fast and easy.
• Equipped with a 3" stainless steel bulkhead fitting and a Ø80 stainless steel valve.
• UV15 protection (twice as resistant as standard UV8 polyethylenes), improving impact and UV resistance.
• Fitted with a lid and a full stainless-steel drainage system for increased durability and easier cleaning.
• Reinforced design on the dome for improved resistance to internal pressure and external stresses.

Key benefits

• Cleaning facilitated by a manhole.
• Improved lid longevity and better sealing thanks to a protective moulding and a rigidified base.
• Anti-surge design reduces tractor wear by breaking the wave.

Note
Speed limited to 25 km/h. Above this, installation of Ball Baffles is mandatory for tank volumes ≥ 8000 L. Use of a tank ≥ 8000 L above 25 km/h without Ball Baffles will not be covered by the warranty.

Technical data
Height (m): 1737
Depth (m): 4190
Diameter (m): 2000
Capacity (L): 10000

Characteristics / technical specifications

• Model: AQUA 10000
• Product reference: AQ10001H-B
• Marque: Duraplas
• Warranty: tank 3 years, parts 1 year
• Materials and outlets: 3" stainless steel bulkhead fitting, stainless steel valve Ø80, lid and full stainless steel drainage system
• UV protection: UV15 (UV resistance and improved impact resistance)
• Design: reinforced dome for better resistance to internal pressures and external stresses
• Product compatibility: can contain liquid fertilizers, molasses, brine, etc., up to 1.4 kg/dm3
• Fixing system: dorsal ridge and axle fixation (axles optional)
• Adaptability: designed for mounting on tipping body or flatbed (compact footprint)
• Cleaning: manhole for manual cleaning
• Main dimensions: height 1.737 m; depth 4.190 m; diameter 2.000 m
