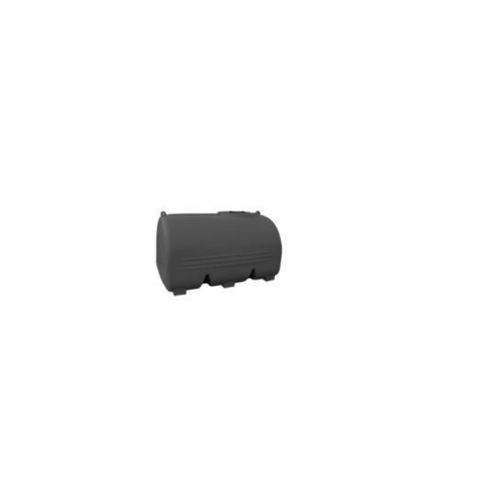

Water tank AQ3001H-B

horizontalUV-resistanttransport

Presentation
Robust horizontal water transport tank with a nominal capacity of 3,000 litres, marketed as AQUA 3000 (model reference AQ3001H-B). Designed for safe handling and long-term outdoor use.

Key advantages

• Easy cleaning via manhole (cover with vent).
• Empty handling and positioning without crane thanks to integrated lifting eyes.
• High-definition anti-UV treatment (UV15) for improved longevity and resistance to impacts and sunlight.
• Flange and bulkhead fitting supplied (bulkhead fitted; valve supplied unmounted to preserve integrity during transport).
• Anti-surge system (Ball Baffle) available to reduce liquid movement and decrease wear on vehicle or tractor.
• Axle-type mounting system available as an option (recommended from 2,000 L) for secure and fast chassis fixation.

Delivery contents / Options
Delivered with female PVC valve DN50 / Teflon; professional drain mounted; manhole Ø 462 mm.

Origin & warranties
Made in France. Tank warranty: 3 years; parts warranty: 1 year. Fast delivery. Home delivery option available on the website.

Additional information
To reduce surge and improve road stability, the Ball Baffle anti-surge system (unique in Europe) can be fitted.

Technical data (table)
Height (m) : 1.200
Width (m) : 1.540
Depth (m) : 2.100
Weight (kg) : 120.000
Key : A
Capacity (L) : 3000

Characteristics / technical specifications

• Commercial model: AQUA 3000
• Product reference: AQ3001H-B
• Nominal capacity: 3000 L
• Dimensions: H 1,200 m × W 1,540 m × D 2,100 m
• Empty weight: 120 kg
• Key: A
• Fittings supplied: bulkhead fitted, female PVC valve DN50 (not mounted), Teflon gasket, professional drain mounted
• Manhole opening: Ø 462 mm (cover with vent)
• Treatment: anti-UV protection (UV15)
• Anti-surge system available: Ball Baffle
• Mounting: axle-type fixing system optional (recommended from 2000 L)
• Origin: Made in France
• Warranties: tank 3 years, parts 1 year
