Water tank AQ12500V

overheadverticalpolyethylene

Presentation

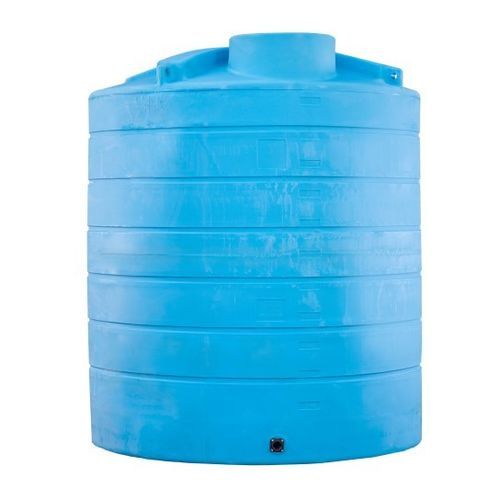

Vertical water storage tank, capacity 12,500 L, model AQ12500V. Suitable for rainwater harvesting and technical or potable water storage depending on configuration.

Included / Equipment

• Pre-mounted tank flange DN50 with female PVC valve, nipple and PTFE tape
• Manhole Ø 455 mm for internal cleaning
• 4 lifting lugs for handling
• Lid with vent

Product features

• UV‑treated, fully opaque polyethylene to prevent algae growth
• Light colour (light blue RAL 5012) to reduce water warming
• Moulded ribs for enhanced rigidity
• Drain diameter and float switch available as options
• Designed for easier movement and empty installation using lifting lugs (no crane required if site conditions permit)
• Manufactured in France
• Tank warranty: 10 years; parts: 1 year

Operation / Use

• Install on a reinforced concrete base that complies with the technical specifications and is perfectly level
• Suitable for liquids with density ≤ 1.2 kg/dm³ (water, rainwater, non‑corrosive liquids)
• Flange position and exact dimensions to be confirmed prior to delivery

Technical specifications

• Height (m): 3.050
• Diameter (m): 2.500
• Capacity (L): 12,500
• Weight (kg): 240
• Product reference: AQ12500V
• Manhole Ø: 455 mm
• Tank flange: DN50 (incl. DN50 valve)
• Material: UV‑treated opaque polyethylene
• Colour: Light blue (RAL 5012)
