Single-axle water bowser CHAQ2001H

chassis-mounted

Overview

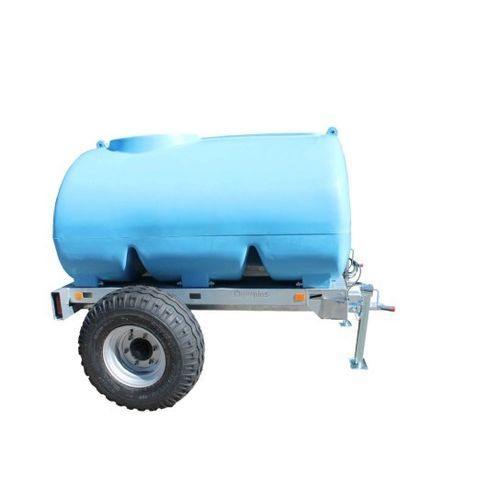

This is a trailer-mounted polyethylene water tank with 2000 L capacity, model CHAQ2001H, road-approved and designed for safe transport of water on agricultural and industrial sites.

Key features

• Secure bolted tank fastening for quick installation.
• Low center of gravity and reduced overall height to minimize liquid surge and ensure transport stability.
• UV15 protection for improved resistance to UV and impact.
• Opaque, UV-resistant polyethylene tank to prevent algae growth.
• Galvanized chassis with two support legs, retractable drawbar and parking brake.
• Preassembled DN50 tank flange with DN50 ball valve.

FAQ (excerpts)

• UV resistance and aging: Tanks are fitted with UV15 protection, offering greater UV and impact resistance compared with standard UV8 polyethylene.
• Pump installation: Either a submersible pump (installed at the bottom of the tank) or a surface pump can be fitted depending on suction and discharge requirements.
• Ball-baffles system operation: The ball-baffles system ensures safe transport of liquids (water, fuels, liquid fertilizers, molasses, etc.) by preventing surge and contributing to up to 40% optimization of braking force.
• Benefits of ball-baffles:
  • Reduced liquid movement and improved stability during transport.
  • Extended service life of anti-surge balls thanks to ultra-durable polypropylene.
  • Reduced vehicle wear.

Optional equipment

• Protected rear lights.
• Bracket with double trough at front and rear of the trailer – swivel double trough.
• Tank-to-trough connections included when ordered with double trough.

Warranty
5 years

Technical specifications

• Volume: 2000 L
• Overall weight: approx. 760 kg
• Key: C
• Tank color: light blue (RAL5012)
• Tank material: polyethylene (UV-resistant, opaque)
• Chassis: galvanized chassis with 2 support legs
• Drawbar: retractable
• Brake: parking brake
• Tank flange: DN50 preassembled including DN50 ball valve
• Max. liquid density: 1.0 kg/L
• Anti-surge: tank indentations to minimize sloshing
• Article number / Reference: CHAQ2001H
