Water tank GPEAR8000-130-B

mobile

Overview

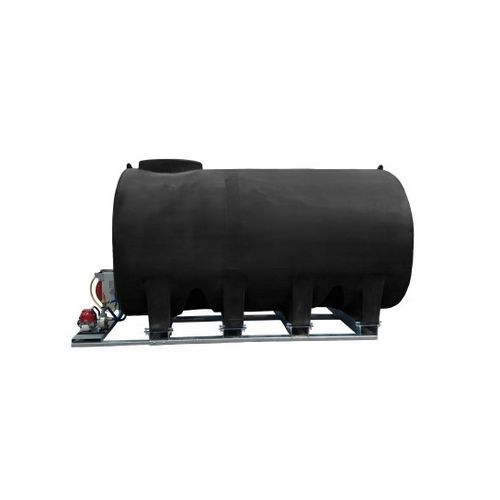

This 8000 L mobile irrigation tank is manufactured in HDPE and belongs to the BASIC range (black). Chassis-mounted and delivered with a Honda engine pump, it includes a 3-year warranty. The axle fixation system ensures secure transport and a fast, reliable installation. The pump fixed to the chassis allows loading and unloading in one operation.

Pump

• Honda engine pump
• Max flow: 130 L/min (7.8 m3/h)
• Engine: Honda 4-stroke GX 31 cc
• Run time: 1.2 h
• Pressure: 3.5 bar
• Self-priming pump
• Max particle size: 5.70 mm
• Connection diameter: 1’’

Technical sheet
Height (m) : 2.000
Width (m) : 1.820
Depth (m) : 3.730
Weight (kg) : 445.000
Key : A
Capacity (L) : 8000

Characteristics / technical specifications

• Capacity: 8000 L
• Material: HDPE (high-density polyethylene)
• Assembly: chassis-mounted
• Fixation system: axle fixation, reliable and quick
• Integrated pump: Honda engine pump (see pump specifications above)
• Pump run time: approx. 1.2 h
• Pump flow: 130 L/min (7.8 m3/h)
• Nominal pump pressure: 3.5 bar
• Admissible particle size: 5.70 mm
• Pump connection diameter: 1’’
• Empty weight: 445 kg
• Dimensions (H×W×D): 2.000 × 1.820 × 3.730 m
• Warranty: 3 years
• Product reference (internal): GPEAR8000-130-B
