Water tank PS60

flexiblefabricpolyester

Summary

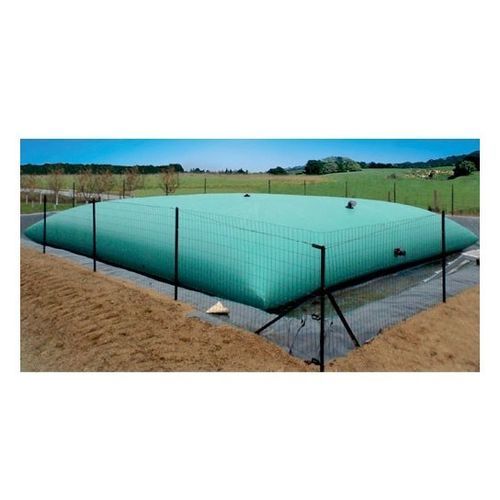

Flexible 60 m3 PVC water bladder for firefighting. The flexible fire reservoir provides full containment of stored liquids. Constructed from high-strength polyester fabric coated with PVC on both sides and assembled by high-frequency welding.

Advantages

• Lightweight & foldable
• Quick and easy to install
• High mechanical performance
• Exceptional weight/resistance ratio
• Adaptable to available space
• Storage in usable volume

Technical sheet
Height (m) : 1.300
Width (m) : 5.900
Depth (m) : 6.100
Weight (kg) : 84.000
Key : C
Capacity (L) : 60000

Additional characteristics

• Inner fabric: High-strength 100% Polyester
• Weight per area: 1300 gr/m2
• Operating temperature: -25°C to 50°C
• Treatment: Mass-dyed anti-UV
• Venting: degassing vent with Ø150 flap
• Valve: DN50 + fire-fighter coupling
• Assembly: high-frequency welding
• Warranty: 10 years

Product benefits
The 60 m3 fire reservoir is equipped to meet the requirements and standards imposed by the DECL. Materials are selected to withstand large volumes.

Technical specifications / details

• Product reference: PS60
• Brand: Duraplas
• Height: 1.300 m
• Width: 5.900 m
• Depth: 6.100 m
• Weight: 84.000 kg
• Capacity: 60,000 L
• Fabric: 100% Polyester coated with PVC (both faces)
• Weight per area: 1300 g/m²
• Operating temperature: -25°C to 50°C
• Anti-UV treatment
• Degassing vent: flap Ø150
• Valve: DN50 + fire-fighter coupling
• Assembly: high-frequency welding
• Warranty: 10 years
