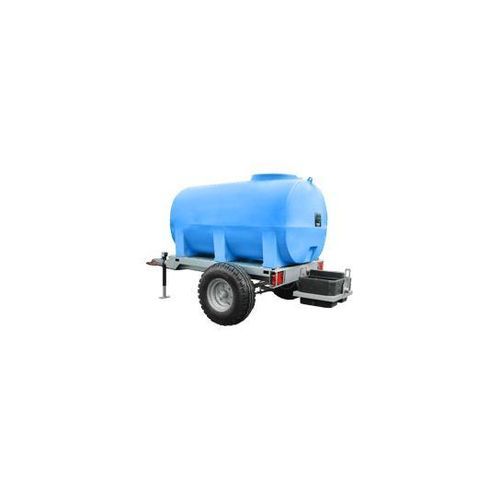

Single-axle water bowser CHAQ3001H

chassis-mounted

Description
Chassis-mounted 3000 L transport tank for water. Polyethylene tank, UV-resistant and opaque to prevent algae. Not road-homologated; designed for on-site water transport and distribution (agricultural use).

Features

• Retractable drawbar to reduce risk of injury to animals during watering
• Removable jack and two support feet
• Hot-dip galvanized chassis
• Quick and secure tank fastening by pins/bolts to the chassis
• DN50 tank flange pre-mounted with DN50 ball valve
• Tank indentations to minimize liquid slosh
• Protected rear lights available as an option
• Optional double trough holders front and rear (swiveling) with connections if ordered

Dimensions and technical aspects
Overall length: 3.68 m
Overall width: 2.10 m
Chassis height (empty): 0.65 m
GVWR (PTAC): 5000 kg
Chassis empty weight: 760 kg
Service brake: mechanical (parking brake)
Drawbar type: retractable
Wheels/tyres: 10.0/75-15.3 new

Recommended use
On-site water transport and distribution, especially for agricultural watering. Not suitable for storage or transport of liquids incompatible with polyethylene or exceeding the manufacturer's indicated limits. Maximum transportable liquid density: 1.0 kg/L.

Characteristics / technical specifications

• Article number: CHAQ3001H
• Brand: Duraplas
• Capacity: 3000 L
• Tank material: polyethylene (UV-resistant, opaque)
• Chassis: hot-dip galvanized
• Drawbar: retractable
• Brake: mechanical
• Tank fastening: pins/bolts to chassis
• Tank flange: DN50 pre-mounted with DN50 ball valve
• Weight (empty chassis): 760 kg
• GVWR (PTAC): 5000 kg
• Wheels/tyres: 10.0/75-15.3 new
• Key: A
• Maximum liquid density: 1.0 kg/L
• Warranty: 5 years

Warranty
5 years
