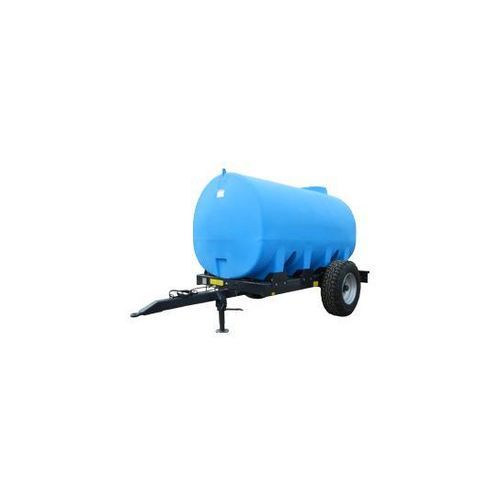

Single-axle water bowser CHAQ8000H

chassis-mounted

Overview
Trailed chassis prepared for installation of an 8000 L transport tank for water and liquid fertilizers. Road-approved and available with painted or hot-dip galvanized chassis options.

Key features

• Designed for mixed terrain access
• Suitable for water, liquid fertilizer and non-contaminated wastewater transport
• Delivery to site available on request
• Chassis painted; galvanization available as an option
• Fixed drawbar standard; spring drawbar optional
• Hydraulic support leg available as an option
• Hydraulic service braking system

Safety and speed note
Axle fixation by reliable fastening axle system. Ball Baffle anti-surge system recommended. Speed limited to 25 km/h. For tanks ≥ 8000 L, operation above 25 km/h requires installation of Ball Baffles. Use of tanks ≥ 8000 L above 25 km/h without Ball Baffles voids warranty.

Technical data
Height (m): 2.610
Width (m): 2.540
Depth (m): 4.760
Weight (kg): 1180.000
Diameter (m): 0.000
Key: C
Capacity (L): 8000
GVW (kg): 9500
Service brake: hydraulic
Drawbar type: fixed
Tyres: 385/65 R22.5

Specifications

• Product reference: CHAQ8000H
• Capacity: 8000 L
• Overall dimensions: length 4.76 m, width 2.54 m, chassis height 0.79 m
• Total height: 2.610 m
• Depth: 4.760 m
• Weight: 1180 kg
• GVW: 9500 kg
• Braking: hydraulic service brakes
• Drawbar: fixed (spring drawbar optional)
• Tyres: 385/65 R22.5
• Chassis finish: painted (hot-dip galvanised optional)
• Available options: spring drawbar, hydraulic support leg, Ball Baffles (anti-surge)
• Use: transport of water, liquid fertilizer, non-contaminated wastewater; road-approved
