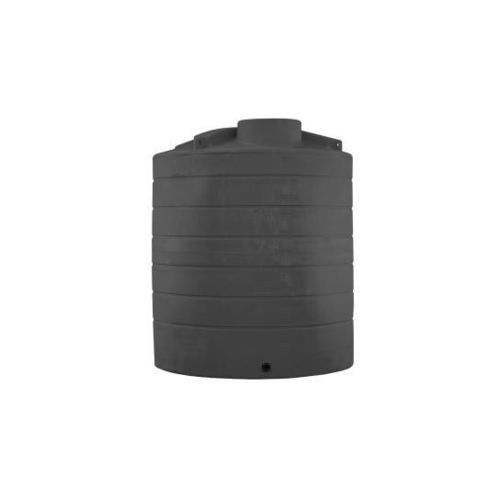

Water tank AQ12500V-B

overheadverticalpolyethylene

Overview
Vertical above-ground water storage tank 12,500 L (AQUA 12500). Designed for rainwater harvesting and general water storage applications.

• Opaque, UV-stabilised polyethylene construction to prevent algae formation.
• High-definition UV treatment for extended service life and preserved water quality.
• Light colour to reduce water warming.
• Vented lid for pressure equalisation.
• Supplied with DN50 female PVC valve, nipple and PTFE tape; pre-mounted tank wall fitting; manhole Ø455 mm for internal access and cleaning.
• Lifting lugs for relocation and empty installation without crane.
• Ribbed design for increased rigidity.
• Optional drain diameter and float level switch available.

Product highlights

• To be installed on a concrete base according to installation specifications.
• Suitable for liquids with maximum density up to 1.2 kg/L.
• Confirm tank wall fitting position and dimensions prior to delivery.

Warranty & manufacturing
Made in France. Tank warranty: 5 years. Spare parts warranty: 1 year.

Specifications / technical data

• Model/Series: BASIC
• Article number: AQ12500V-B
• Material: UV-treated polyethylene
• Flange: DN50 (pre-mounted) with DN50 ball valve
• Manhole: Ø455 mm
• Max. fluid density: 1.2 kg/L
• Lifting lugs: 4
• Colour: Light blue (RAL 5012)
• Volume: 12,500 L
• Height (m): 3.050
• Diameter (m): 2.500
• Weight (kg): 240
• Availability: Fast delivery depending on stock
