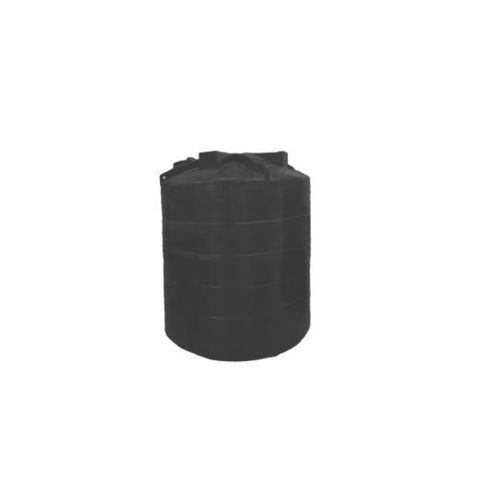

Water tank AQ5001V-B

overheadverticalUV-resistant

Description
Above‑ground vertical water tank with 5000 L capacity, suitable for rainwater harvesting and general water storage. Colour: Black (9005). Material: polyethylene without plasticizers with UV15 protection for improved resistance to UV and ageing. Manhole Ø 462 mm for internal access. Product reference AQ5001V-B.

Included

• PVC female valve DN50 (with PTFE tape)
• Tank pass‑through (installed)
• Professional drain (installed)
• Manhole Ø 462 mm
• Tank flange DN80 pre‑mounted with reducer and plastic ball valve DN50
• Lid with breather/ventilation

Options

• Electric pump 230 V (single‑phase)
• Electric pump 380 V (three‑phase)
• Honda petrol pump — flow 700 L/min
• Level gauge (optional)

Installation / Use

• To be placed on a concreted surface according to installation specifications
• Suitable for liquids with maximum density ≤ 1 kg/dm³
• Four lifting lugs for handling when empty and for possible anchoring to the base

Durability / Materials
Polyethylene without plasticizers with UV15 protection (higher UV and ageing resistance than standard UV8 polyethylenes), improved impact and UV resistance. Colour: Black (9005).

Characteristics / Technical specifications

• Capacity: 5000 L
• Height: 2.280 m
• Diameter: 1.890 m
• Dimensions (Ø x H): Ø 1890 x 2280 mm
• Empty weight: 140 kg
• Product reference: AQ5001V-B
• Valve supplied: DN50 (PVC female)
• Tank flange: DN80 pre‑mounted with reducer and DN50 ball valve (plastic)
• Manhole: Ø 462 mm
• Maximum liquid density: suitable for liquids ≤ 1 kg/dm³
