Water tank AQ8000H-B

polyethyleneUV-resistanttransport

Overview

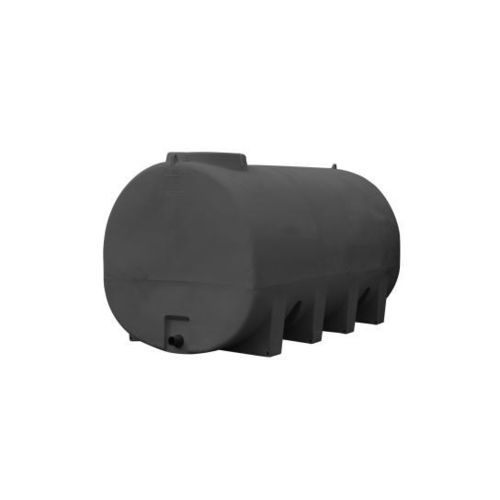

Horizontal water tank with a usable capacity of 8,000 litres, designed for transport and field use in agricultural applications.

• Easy cleaning via manhole (cover with vent).
• Movement and installation without crane when empty using handling lugs.
• High-definition UV treatment: 2× protection compared with standard polyethylene.
• Supplied with female PVC DN50 valve and PTFE tape; professional drain fitted; manhole Ø462 mm.
• Valve delivered unmounted to preserve the product during transport.
• Anti-slosh design to reduce wear on towing vehicles.
• Optional axle-fixation kit for chassis mounting (available from 2,000 L).
• Manufactured in France. Tank warranty: 3 years; parts: 1 year.

Advantages
For safe transport choose the Ball Baffle anti-slosh system (unique in Europe). Note: maximum permitted speed 25 km/h. For tanks ≥ 8,000 L, Ball Baffles are mandatory when driving above 25 km/h. Use of a tank ≥ 8,000 L above 25 km/h without Ball Baffles voids warranty for related damage.

Technical data
Height (m) : 1.820
Width (m) : 1.820
Depth (m) : 3.230
Weight (kg) : 300.000
Key : A
Capacity (L) : 8000

Characteristics / technical specifications

• Product reference: AQ8000H-B
• Commercial name: AQUA 8000
• Usable capacity: 8,000 L
• Height: 1.820 m
• Width: 1.820 m
• Depth: 3.230 m
• Empty weight: 300 kg
• Manhole: Ø 462 mm
• Delivered with female PVC DN50 valve and PTFE; professional drain fitted
• Bulkhead gland fitted; valve left unmounted for transport
• High-definition UV treatment (2× protection vs standard PE)
• Option: axle-fixation kit for chassis mounting (from 2,000 L)
• Anti-slosh: recessed tank profile; optional Ball Baffles
• Made in France
• Warranty: tank 3 years; parts 1 year
