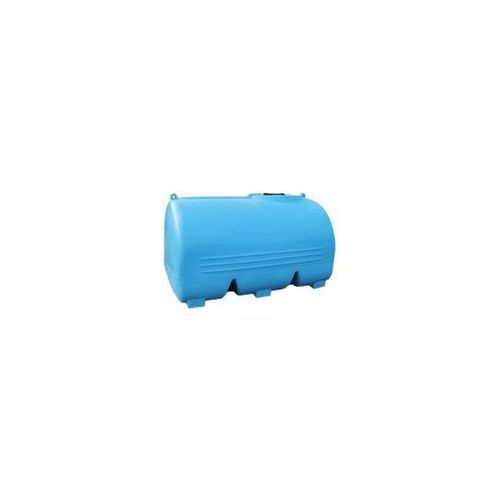

Water tank AQ3001H

horizontalUV-resistanttransport

Overview
Horizontal water transport tank with 3000 L capacity. Model AQUA 3000. Supplied with PVC female valve DN50 (with Teflon) and professional drain pre-installed. Manhole Ø462 mm. Manufactured in France. Tank warranty: 5 years; parts warranty: 1 year.

Key features

• Easy cleaning via manhole with vented cover.
• Transport and installation without empty-crane thanks to lifting lugs.
• High-definition UV treatment (UV15) for increased UV and impact resistance.
• Bulkhead (passe-cloison) supplied and pre-mounted; valve supplied but not assembled for transport protection.
• Anti-slosh system (Ball Baffle) to reduce liquid movement, decrease vehicle wear, improve stability and braking performance.
• Optional axle-fixation system recommended for mounting on chassis from 2000 L.
• Maximum transportable fluid density: 1.2 kg/L.

Technical data
Height (m) : 1.200
Width (m) : 1.540
Depth (m) : 2.100
Empty weight (kg) : 120
Key : A
Capacity (L) : 3000

Characteristics / technical specifications

• Model: AQUA 3000
• Capacity: 3000 L
• Height: 1.200 m
• Width: 1.540 m
• Depth: 2.100 m
• Empty weight: 120 kg
• Key: A
• Manhole Ø: 462 mm (vented cover)
• Delivered with: PVC female valve DN50 (with Teflon) and professional drain pre-installed
• Bulkhead (passe-cloison) pre-mounted (valve supplied unmounted)
• High-definition UV treatment (UV15) — improved UV and impact resistance
• Ball Baffle anti-slosh system (reduces liquid movement and optimizes braking)
• Optional axle-fixation system for chassis mounting (recommended from 2000 L)
• Manufacture: France
• Tank warranty: 5 years — Parts warranty: 1 year
