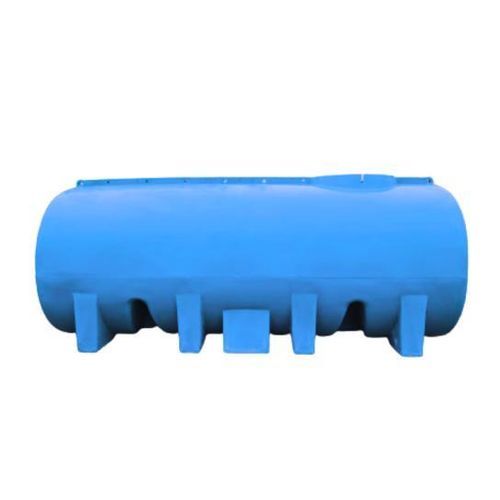

Water tank AQ10001H

horizontalUV-resistanttransport

Overview
AQUA 10000
Transport water tank with 10,000 L capacity, designed for safe mounting on tippers or flatbeds.

Warranty
Tank warranty: 5 years. Spare parts warranty: 1 year.

Equipment

• 3" stainless steel tank penetration (pass-through)
• DN80 stainless steel valve
• Lid and drainage system entirely in stainless steel
• Manhole for internal cleaning
• Lifting rings for strap handling

Product features and benefits
Low and wide design to maximize transport safety and vehicle stability.
Anti-slosh design reduces liquid movement and vehicle wear.
Dorsal stop and robust axle-based fixing system (fixing axles optional) for stable and simple mounting on a tipper or flatbed.
Reinforced dome for improved resistance to internal pressures and external stresses.
Extended service life thanks to UV15 protection, approximately twice the resistance of standard UV8 polyethylenes, improving impact and UV resistance.
Accepts liquids with densities up to 1.4 kg/dm3 (subject to application and fittings).

Usage instructions
Maximum speed limited to 25 km/h. For tanks ≥ 8,000 L, installation of Ball Baffles is mandatory when operating above 25 km/h. Use of a tank ≥ 8,000 L above 25 km/h without Ball Baffles voids the warranty for resulting damages.

Additional features

• Compact footprint for adaptation to various supports (tipper or flatbed)
• Easy handling when empty thanks to lifting rings
• Cleaning facilitated via manhole
• Base molding for protection and stiffening to improve lid sealing and service life

Technical specifications

• Product reference: AQ10001H
• Height (m): 1737
• Depth (m): 4190
• Diameter (m): 2000
• Capacity (L): 10000
• Condition: new (product presentation)
• UV protection: UV15 (reinforced)
• Key materials: rotationally moulded polyolefin, stainless steel elements (pass-through, valve, drain, lid)
