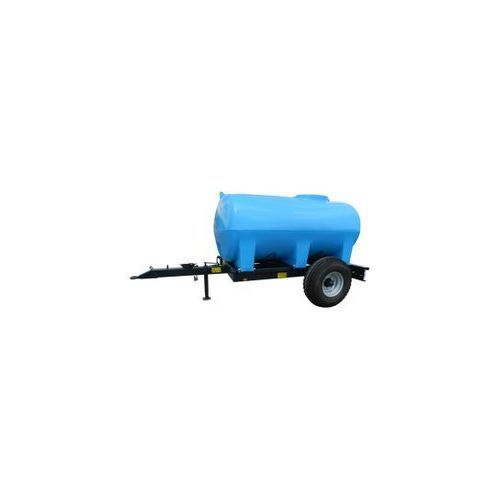

Single-axle water bowser CHAQ5001H

chassis-mounted

Overview
Rolling chassis fitted with a 5,000-litre tank for water. Road-approved for on‑road transport. Water tanker designed for the transport and storage of water.

Benefits / Use

• Capable of traversing a wide range of terrains
• Suitable for storage and transport of water, liquid fertilizers and grey water
• Home/site delivery available

Options

• Chassis painted (galvanized option available)
• Fixed drawbar or spring drawbar option
• Hydraulic support leg (optional)

Main characteristics (table format)
Overall length of the plastic water tanker: 3.94 m
Overall width: 2.53 m
Chassis height: 0.67 m
GVWR: 7,500 kg
Service brake: hydraulic
Type of drawbar: Fixed (spring drawbar available as option)
Wheels / tyres: 12.5/80-15.3

Additional information (FAQ summary)

• UV resistance: tanks supplied with UV15 protection, improving UV and ageing resistance compared with standard polyethylene.
• Pump installation: compatible with either a submersible pump (mounted at the bottom) or a surface pump (connected to suction/discharge).
• Transport stability: ball-baffles can be added to reduce liquid surge and improve stability and braking performance.

Technical specifications

• Capacity: 5,000 L
• Empty weight: 1,053 kg
• Diameter (m): 0.000
• Key: C
• Overall length: 3.94 m
• Overall width: 2.53 m
• Chassis height: 0.67 m
• GVWR: 7,500 kg
• Service brake: hydraulic
• Type of drawbar: Fixed (spring drawbar optional)
• Wheels / tyres: 12.5/80-15.3
