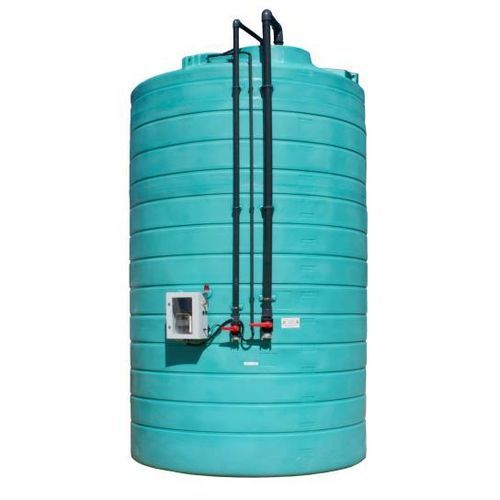

Liquid fertilizer tank DPR12000

verticalpolyethyleneUV-resistant

Summary
This system consists of a polyethylene containment housing a rigid double-walled tank. No separate retention basin is required. The only double-walled tank where, in case of overflow, the fertiliser discharges between the two walls and not outside. Reduce your civil engineering costs by adopting a ready-to-use solution.

Main features

• Agricultural equipment for storage of liquids, irrigation, fertiliser
• Model with electrical cabinet including a fill alarm, a leak detector and an electronic gauge
• Model with rigid inner wall
• 4 handling points
• High-definition UV treatment providing twice the protection of standard polyethylene
• Leak detector with integrated alarm
• Fill alarm with integrated alarm
• Filling at working height
• Optimal protection against rodents and vandalism
• 3'' valve and 2'' valve
• Welding system ensuring total tightness and optimal strength
• Inner wall fully secured thanks to the space between the two tanks

Benefits

• Reduce civil engineering costs by adopting a ready-to-use solution (storage tank with integrated retention)
• Opt for a secure solution
• Homogeneous mixture that will not clog sprayer nozzles: the product is agitated and mixed by the stainless-steel pump of the double-walled tank
• Relocatable as your farm evolves without exceptional transport thanks to the flexibility and durability of polyethylene, its lifting rings and dimensions
• Easy access to the valve to prevent sprayer overflow (valve at working height)
• Optional fill limiter to avoid losses during unloading
• Leak detection system compliant with current regulations for environmental protection
• Electronic level gauge placed inside the tank (no external tubing)

Technical specifications

• Reference: DPR12000
• Brand: Duraplas
• Height (m): 3.500
• Width (m): 0.000
• Depth (m): 0.000
• Weight (kg): 1000.000
• Diameter (m): 2.500
• Key: C
• Capacity (L): 12000
