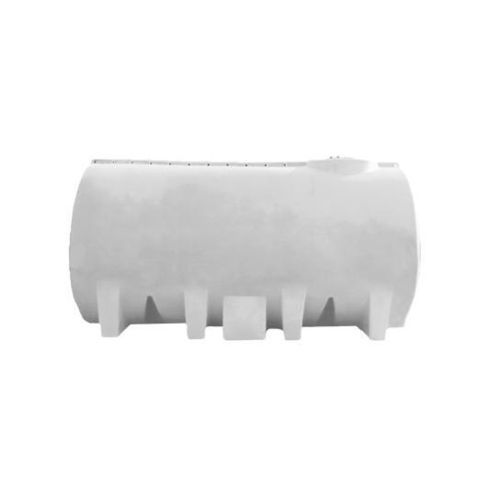

Liquid fertilizer tank DC13001VL-B

horizontaltransport

Overview
DURACUVE 13000 — Fertilizer transport tank with 13,000 L capacity. Low center of gravity and reduced overall height ensure stable and safer transport. Supplied with a 3 in stainless steel bulkhead and a Ø80 stainless steel valve.

Key benefits

• Safe transport of liquid fertilizers thanks to a low, stable design.
• Handling rings sized for strap passage to simplify empty handling and lifting.
• Versatile: suitable for liquid fertilizers, molasses, brine, etc., up to a maximum density of 1.4 kg/dm³.
• Compact footprint: adapts easily to various supports (truck bed, flatbed).
• Dorsal ridge and axle-fixation system for maximum security; axles available as an option.
• Every tank is fitted with a 3 in stainless steel bulkhead and a Ø80 stainless steel valve.

Warranty
Tank: 3 years. Parts: 1 year.

Warning
Note: Road speed limited to 25 km/h. For tank volumes ≥ 8000 L and speeds above 25 km/h, installation of Ball Baffles is mandatory. Use of a tank ≥ 8000 L above 25 km/h without Ball Baffles is not covered by the warranty.

Technical sheet
Height (m) : 2.120
Weight (kg) : 630
Diameter (m) : 4.190
Capacity (L) : 13,000

Technical specifications

• Product reference: DC13001VL-B
• Model: DURACUVE 13000
• Capacity: 13,000 L
• Height: 2.120 m
• Diameter: 4.190 m
• Empty weight: 630 kg
• Bulkhead: 3 in stainless steel
• Valve: stainless steel Ø80
• Maximum supported density: up to 1.4 kg/dm³
• Handling: lifting rings for strap passage
• Safety: low center of gravity, dorsal ridge and axle fixation (axles optional)
• Road use limitation: speed ≤ 25 km/h without Ball Baffles for volumes ≥ 8000 L
