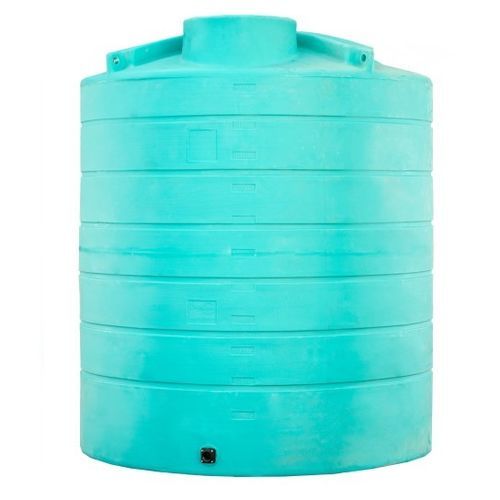

Liquid fertilizer tank DC12500LVT

verticalpolyethyleneUV-resistant

Presentation
Vertical DURACUVE 12500 L tank in turquoise for storage of liquid fertilizer. One-piece rotomolded polyethylene design suitable for high-density solutions up to 1.4 kg/dm3. Supplied with DN50 polypropylene valve and pre-mounted tank penetration (Teflon).

Main features

• High-definition UV protection for extended service life and preserved product quality.
• Rigid polyethylene material resistant to impacts and rodents compared with flexible materials.
• Compatible with high-density media (e.g. liquid fertilizer, molasses, brine) up to 1.4 kg/dm3.
• Lid with vent (semi-automatic lid secured to tank to ensure ventilation and safety).
• Drain diameter: DN80 (stainless steel) + DN50 reducer + DN50 valve (PP).
• Optional float level indicator.
• Cleaning facilitated via 455 mm manhole.
• Integrated lifting lugs for empty handling and installation without crane.
• Ribbed design for improved rigidity.
• Factory-mounted tank penetration to ensure optimal sealing.
• Made in France.
• Tank warranty: 10 years. Parts warranty: 1 year (according to terms and conditions).

Key benefits

• Direct level visibility to monitor contents easily.
• Semi-automatic lid secured to the tank to ensure proper ventilation and prevent loss of the lid.
• Smooth interior eases cleaning and extends nozzle life.
• Wide range of capacities available (from 4,900 to 25,000 litres) to select the right volume for your needs.
• Limited footprint (diameters typically between 1.9 and 3 m) to reduce civil engineering costs.
• Monobloc rotomolded manufacture with reinforced corners for increased longevity.

Technical sheet
Height (m) : 3.050
Weight (kg) : 350.000
Diameter (m) : 2.500
Key : A
Capacity (L) : 12500

Technical specifications

• Product reference: DC12500LVT
• Model: DURACUVE 12500
• Capacity: 12 500 L
• Height: 3.050 m
• Diameter: 2.500 m
• Weight: 350 kg
• Material: polyethylene (rotomolding, monobloc)
• Supported media density: up to 1.4 kg/dm3
• Drain: DN80 stainless steel + DN50 reducer + DN50 polypropylene valve
• Lid: semi-automatic with vent
• Options: float level indicator
• Fittings supplied: DN50 PP valve and pre-mounted tank penetration (Teflon)
• Cleaning: manhole
• Handling: integrated lifting lugs for slinging and empty lifting
• UV protection: yes (high-definition)
• Origin: made in France
• Warranty: tank 10 years, parts 1 year (according to T&C)
