Liquid fertilizer tank DC10200LVT-B

verticalpolyethyleneUV-resistant

Presentation

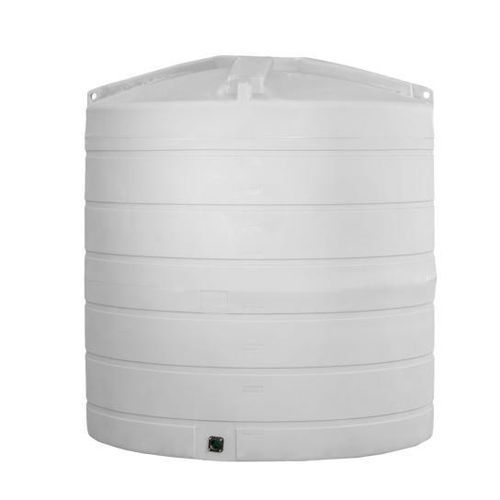

Vertical single-wall DURACUVE storage tank (commercial reference DURACUVE 10200 V), white, intended for storage of liquid fertilizers and other high-density liquids up to 1.4 kg/dm3. Commercial capacity: 10,000 L.

Key features

• UV-treated polyethylene by rotomolding for long service life and stable product quality.
• Rigid material resists cuts and rodents compared with flexible tanks.
• Suitable for liquids up to density 1.4 kg/dm3 (e.g., liquid fertilizer, molasses, brine).
• Semi-automatic hinged lid with vent to ensure ventilation and lid retention; lid fitted with vent.
• Pre-mounted tank flange DN50 with polypropylene ball valve; drainage fittings: DN80 (stainless steel) + DN50 reduction + DN50 valve (PP) supplied.
• Float level sensor available as an option.
• Easy cleaning via manhole and smooth interior aiding nozzle cleaning.
• Handling rings for empty repositioning and installation without crane (sling passages provided).
• Ribbed shell and reinforced base for improved rigidity; protective molding ensures lid sealing.
• Workshop-mounted wall sleeve for optimal sealing.
• One-piece rotomolded construction with reinforced corners; made in France.
• Wide capacity range available (examples: 4,900 to 25,000 L) with diameters typically between 1.9 m and 3.0 m depending on model.
• Warranty: tank 10 years, parts 1 year (subject to terms and conditions).

Commercial information
Commercial capacity indicated: 10,000 litres for liquid fertilizer. Rotomolded polyethylene construction suitable for nitrogenous and other high-density solutions (up to 1.4 kg/dm3). Color: white (RAL 9010).

Technical specifications

• Height (m): 2.700
• Diameter (m): 2.400
• Weight (kg): 280
• Key: A
• Capacity (L): 10000
• Drainage: DN80 stainless steel + DN50 reduction + DN50 valve (polypropylene)
• Material: rotomolded polyethylene, UV-treated
• Accepted density: up to 1.4 kg/dm3
• Options: float level sensor
• Cleaning: manhole Ø 455 mm
• Origin: made in France
• Warranty: tank 10 years, parts 1 year (according to GTC)
