Liquid fertilizer tank PS99

flexiblefabricpolyester

Overview

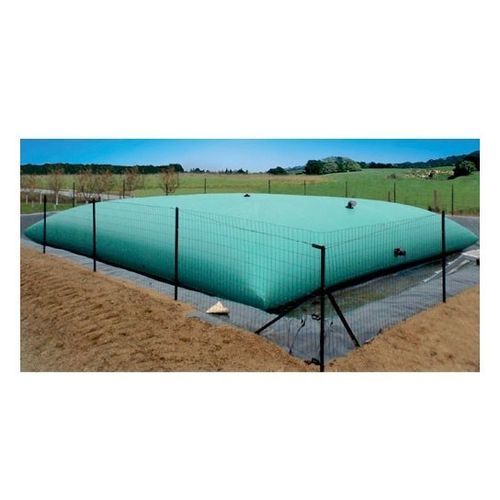

FLEXTANK 99 — flexible PVC tank for on-site storage of liquid fertilizer, useful capacity 99,000 L.

Characteristics
The flexible tanks are manufactured from high-strength polyester fabric coated with PVC on both sides and assembled by high-frequency welding.

• Lightweight and foldable
• Quick and easy to install (under 4 h for a 50 m³ unit)
• Adaptable to available space
• Storage in usable volume

Materials and treatment

• Inner fabric: high-strength 100% polyester
• Grammage: 1300 g/m²
• Operating temperature: -25 °C to 50 °C
• Treatment: mass-added anti-UV

Equipment

• Degassing vent with flap Ø150
• Valve DN50 with fire-fighting coupling

Advantages

• Cost-effective: low initial investment
• No civil engineering works required
• No building permit typically required
• Eligible for certain subsidies

Technical data
Height (m): 1.5
Width (m): 8.9
Depth (m): 10.4
Empty weight (kg): 215
Key: C
Capacity (L): 99,000

Technical characteristics / specifications

• Reference: PS99
• Model: FLEXTANK 99
• Material: high-strength polyester fabric coated PVC on both faces
• Grammage: 1300 g/m²
• Operating temperature: -25 °C to 50 °C
• Anti-UV treatment in the mass
• Degassing: flap Ø150
• Valve: DN50 with fire-fighting coupling
• Usable capacity: 99,000 L (99 m³)
• Dimensions: H 1.5 m × W 8.9 m × D 10.4 m
• Empty weight: 215 kg
• Warranty: 10 years
