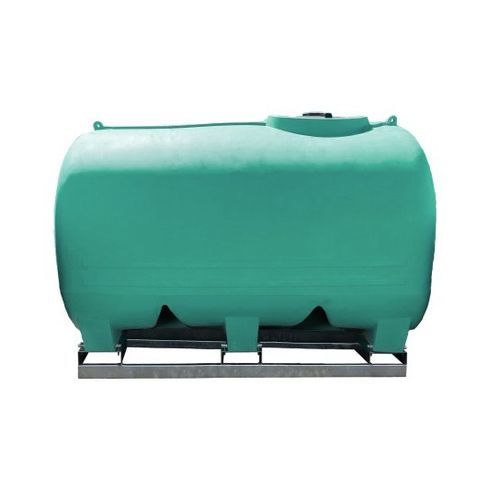

Liquid fertilizer tank DC5001VTC

horizontalpolyethyleneUV-resistant

Trade name
DURACUVE 5000

Overview
5000 L transport tank with total drain. Supplied with polypropylene DN50 valve and fitted manhole Ø462.

Description

• Reliable, quick axle fastening system for secure mounting on a chassis.
• High-definition UV treatment to extend service life.
• Versatile: accepts dense liquids up to 1.4 kg/dm3 (liquid fertiliser, molasses, brine, etc.).
• Semi-opaque, high-grade polyethylene construction.
• Anti-surge system (reduces surge) to limit vehicle wear.
• Tank warranty: 5 years; parts warranty: 1 year (according to terms and conditions).

Key benefits

• Sump located beneath the tank enabling total drainage.
• Extends the service life of spray pumps.
• Galvanized chassis for corrosion resistance.
• Fork pockets for easy handling.
• Compatible with Ball Baffle anti-surge system for calm transport.

Technical data
Height (m) : 1.430
Width (m) : 2.000
Depth (m) : 2.450
Weight (kg) : 330.000
Key : A
Capacity (L) : 5000

Characteristics / technical specifications

• Product reference: DC5001VTC
• Model name: DURACUVE 5000
• Capacity: 5000 L
• Dimensions: H 1.430 m × W 2.000 m × D 2.450 m
• Empty weight: 330 kg
• Material: semi-opaque polyethylene with UV protection
• Liquid compatibility: up to 1.4 kg/dm3 (liquid fertiliser, molasses, brine, etc.)
• Supplied valve: polypropylene DN50
• Access: manhole Ø 462
• Mounting: axle fastening system for chassis installation
• Transport safety: anti-surge system (Ball Baffle) available
• Chassis: galvanized
• Functionality: sump for total drainage
• Warranties: tank 5 years, parts 1 year (according to terms and conditions)
