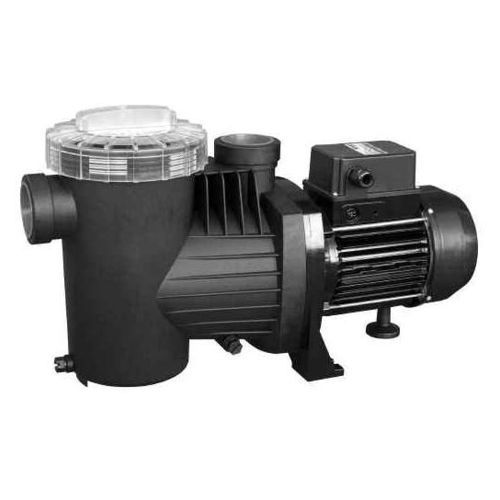

Electric pump PPE500-230

suction lift

Description
Suitable for fixed installations. Thermal protection and start capacitor integrated. Motor: 230V / 50Hz. Variable flow: 100 to 350 L/min. Inlet and outlet: DN50 female. Discharge head: Up to 30 m. Maximum suction depth: 3 m.

Key features

• Polypropylene pump body — chemical-resistant and non-corroding.
• Integrated thermal protection and start capacitor.
• Variable flow range 100–350 L/min for dosing and transfer applications.

Technical specifications

• Reference: PPE500-230
• Flow: 100 to 350 L/min
• Motor: 230V / 50Hz
• Inlet / outlet: DN50 female
• Discharge head: Up to 30 m
• Maximum suction: 3 m
• Weight: 15.000 kg
• Height (m): 0.000
• Width (m): 0.000
• Depth (m): 0.000
• Diameter (m): 0.000
• Key: B
• Capacity (L): 0.000
• Body material: Polypropylene
