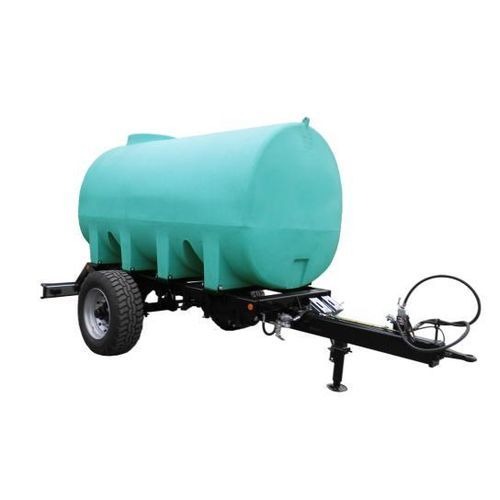

Single-axle water bowser CHADC6100VL

chassis-mounted

Description
Road-legal tank trailer mounted on an EFA C120 chassis with a 6000 L tank, ABE approval up to 25 km/h. Designed for agricultural transport of water, liquid fertilizer and non-contaminated wastewater; suitable for varied terrain and on-site delivery.

Key benefits

• Capable of operating on diverse terrains thanks to a reinforced chassis
• Suitable for transporting water, liquid fertilizer or non-contaminated wastewater
• On-site delivery available
• Painted chassis; galvanizing available as an option
• Service brake: hydraulic (pneumatic braking versions available)

Options and accessories

• Fixed drawbar or spring drawbar
• Optional hydraulic jockey leg
• Ball Baffle anti-sway system
• Reliable and quick axle fixation

Technical characteristics / specifications

• Chassis model: EFA C120
• Article reference: CHADC6100VL
• Capacity (L): 6000
• Weight (kg): 9500
• GVW / PTAC (kg): 9500
• Overall length: 4.76 m
• Overall width: 2.54 m
• Chassis height: 0.79 m
• Drawbar type: fixed (spring drawbar optional)
• Service brake: hydraulic (or pneumatic depending on configuration)
• Wheels/tyres: 385/65 R22.5 (depending on configuration)
• Axle: track approx. 2200 mm, 10-hole
• Approval: ABE up to 25 km/h; DEKRA acceptance possible
