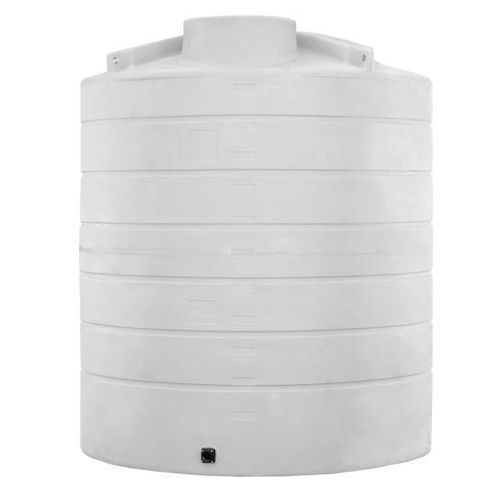

Liquid fertilizer tank DC12500LVT-B

verticalpolyethylenesmooth-wall

Overview
Rotomoulded polyethylene storage tank for liquid fertilizer with a capacity of 12,500 L. UV-stabilized treatment and manufactured in France.

Usage and materials

• Rigid material resistant to impacts and rodents.
• Designed to store high-density solutions up to 1.4 kg/dm3 (e.g.: liquid fertilizer, molasses, brine). Suitable for other liquids after prior assessment.
• Semi-automatic lid with vent for ventilation.
• Smooth interior for easy cleaning and extended service life of fittings.

Supplied equipment and options

• Supplied with polypropylene DN50 valve and mounted tank penetration (with PTFE).
• Drain diameter: DN80 stainless steel + DN50 reducer + DN50 (PP) valve.
• Optional float level sensor.
• Manhole for internal cleaning.
• Integrated lifting lugs for handling when empty without crane.

Technical specifications (sheet)
Height (m) : 3.050
Weight (kg) : 350.000
Diameter (m) : 2.500
Key : A
Capacity (L) : 12500

Characteristics / technical specifications

• Capacity: 12,500 L
• Height: 3.050 m
• Diameter: 2.500 m
• Weight: 350 kg
• Maximum admissible density: up to 1.4 kg/dm3
• Material: rotomoulded polyethylene, one-piece, ribs for rigidity
• Treatment: high-definition UV protection
• Drain: DN80 stainless steel + DN50 reducer + DN50 (PP) valve
• Equipment: manhole, vented lid, lifting lugs, mounted tank penetration
• Options: float level sensor
• Manufacture: France
• Warranty: tank 5 years; parts 1 year (according to terms and conditions)
