Water tank PS120

liquid fertilizerflexiblestorage

Description

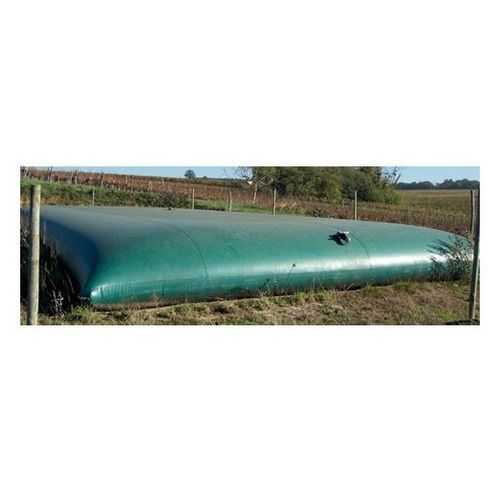

Flexible bladder tank for on-site storage of water and liquid fertilizers. Foldable, closed container made of PVC-coated technical fabric with a fertilizer-resistant inner treatment. Capacity: 120,000 L. Reference: PS120. Model: Flexsack FLEX 120.

Usage
Suitable for liquid fertilizer storage, irrigation water storage and as a fire-fighting reservoir.

Supplied with

• 4'' quarter-turn valve
• 4'' fire coupling
• 4'' cap
• 2'' elbow
• 2'' fire coupling

Benefits

• Low initial investment and no major civil works
• No building permit required in many cases
• Foldable, lightweight and easy to transport and install
• Chemical-resistant coating suitable for fertilizers
• Optional DN80 fill/discharge elbow and DN50 PPG chemical-resistant valve
• Recommended containment membrane with volume ≥ tank volume for leak protection
• Wide temperature range: -30 °C to +70 °C

Technical specifications

• Reference: PS120
• Model: Flexsack FLEX 120
• Capacity (L): 120000
• Material: PVC-coated technical fabric with fertilizer-resistant coating
• Valve: PPG plastic DN50 (chemical-resistant)
• Optional: DN80 fill/discharge elbow
• Venting: Integrated vent on manway
• Temperature resistance: -30 °C to +70 °C
• Weight (kg): 210
• Dimensions (H x W x D): 1.600 m x 11.700 m x 8.880 m
• Connection class: C
