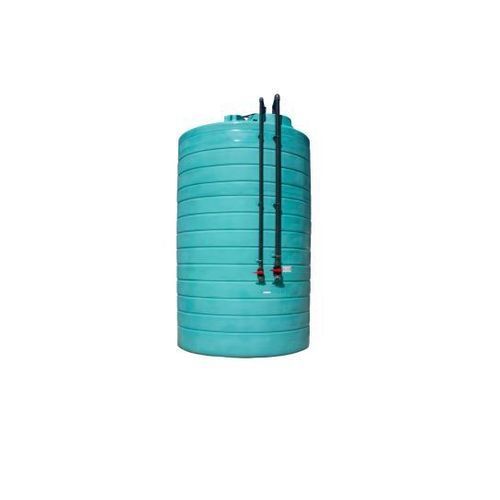

Liquid fertilizer tank DPR12000ECO

verticalpolyethyleneUV-resistant

Overview
The only double-walled tank where, in case of overflow, the fertilizer is discharged between the two walls and not to the exterior.
Reduce civil works costs by adopting a ready-to-use storage solution: tank with integrated retention.
Commercial name
SECURITANK 12000L ECO
Warranty
10 YEAR WARRANTY

Key features

• Model with rigid inner wall
• 4 lifting points
• High-definition UV treatment providing twice the protection of standard polyethylene
• Man-accessible filling
• 3'' and 2'' valves
• Versatile: accepts high-density solutions (up to 1.4 kg/dm3) such as liquid fertilizer, molasses, brine. May suit other liquids (prior study required)
• Welding system ensuring full tightness and optimal strength
• Inner wall secured by the space between the two tanks

Product advantages

• Ready-to-use solution with integrated retention (no separate retention basin required)
• Product is circulated and mixed by the tank's stainless-steel pump (preserves homogeneity and prevents nozzle clogging on sprayers)
• Relocatable solution as the farm evolves, without exceptional transport thanks to polyethylene flexibility and strength, lifting rings and dimensions
• Man-accessible valve to prevent overflow during filling
• Optional fill limiter available to alert during unloading and prevent product loss
• Leak detection system compliant with current regulations
• Secure stock management: internal electronic level gauge (no external tube)

Technical sheet
Height (m) : 3.500
Diameter (m) : 2.500
Capacity (L) : 12000

Specifications / technical data

• Height: 3.500 m
• Diameter: 2.500 m
• Capacity: 12000 L
• Material: polyethylene (retention in polyethylene containing a rigid inner tank)
• High-definition UV treatment (2× protection vs. standard polyethylene)
• Rigid inner wall and double wall with safety space
• 4 lifting points
• Valves: 3'' and 2''
• Compatibility with high-density liquids up to 1.4 kg/dm3
• Welding system ensuring tightness and strength
• Man-accessible filling
• Internal electronic level gauge
• Warranty: 10 years
