Liquid fertilizer tank DC31000XXLVT

verticalpolyethyleneUV-resistant

Overview

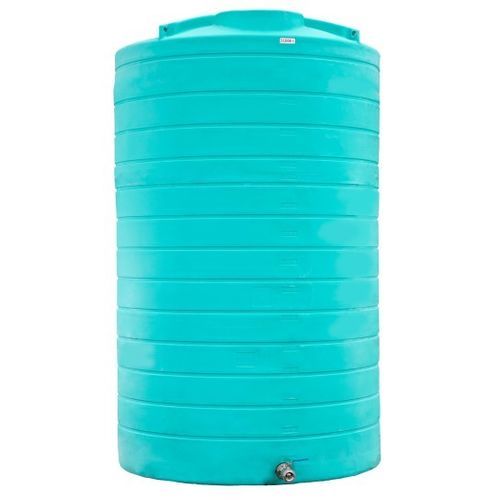

31 000 L fertilizer storage tank. Available in 12 colours. Compact design (wider and lower) for easier siting. Suitable to store a full fertilizer truck load with buffer margin. Easy to move and position thanks to low empty weight and an excellent weight/volume ratio. Nominal capacity: 30 000 L (model DURACUVE 31000).

Main features

• High-definition anti-UV treatment to extend service life and preserve stored product quality.
• Rigid material (rotomoulded polyethylene): impact- and rodent-resistant, suitable for handling.
• Versatile: accepts high-density solutions (up to 1.4 kg/dm3) such as liquid fertilizer, molasses, brine; other liquids can be evaluated.
• Semi-automatic lid with vent for ventilation and safety.
• Drain diameter: DN80 (stainless steel) with DN80 valve. Float level sensor available as option.
• Cleaning facilitated by an integrated manhole.
• Integrated lifting rings: allow handling and installation of the empty tank without a crane.
• Ribbed design for improved mechanical rigidity.
• Factory-fitted tank penetration to ensure leak-tightness.
• Made in France. Tank warranty: 10 years; parts: 1 year.

Benefits

• Compatible with nitrogenous liquids thanks to polyethylene construction (density up to 1.4 kg/dm3).
• Anti-UV treatment preserves stored product quality.
• Lifting rings sized for strap passage (handling and lashing).
• Semi-autonomous lid fixed to tank to ensure ventilation and prevent loss of the lid.
• Manhole allows easy internal cleaning.
• Smooth interior for easier cleaning and extended nozzle life.
• Reinforced base and protective moulding ensuring lid tightness.
• Wide range of capacities (examples in range: 4 900 to 25 000 L) and small footprint (diameters between 2.3 and 3 m) to optimize civil engineering costs.
• One-piece rotomoulded construction with reinforced corners for prolonged service life.

Technical sheet
Height (m) : 5.100
Weight (kg) : 1 020
Diameter (m) : 2.980
Key : C
Capacity (L) : 30 000

Specifications / technical details

• Product reference: DC31000XXLVT
• Commercial model: DURACUVE 31000
• Nominal capacity: 30 000 L
• Height: 5.100 m
• Diameter: 2.980 m
• Empty weight: 1 020 kg
• Material: rotomoulded polyethylene (monobloc)
• Treatment: high-definition anti-UV
• Drain diameter: DN80 stainless steel with DN80 valve
• Float sensor: optional
• Cleaning: integrated manhole
• Handling: integrated lifting rings for empty handling
• Sealing: factory-mounted tank penetration
• Maximum compatible liquid density: up to 1.4 kg/dm3
• Origin: made in France
• Warranty: tank 10 years, parts 1 year
