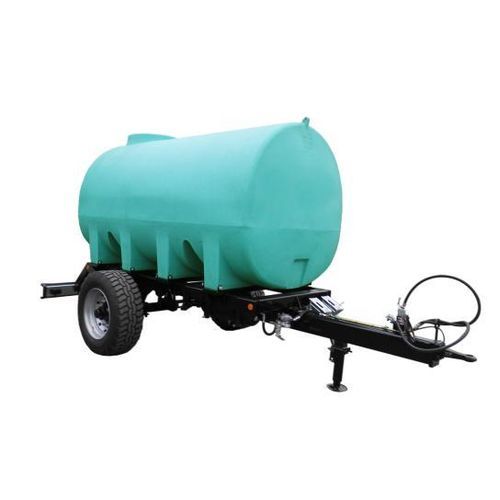

Single-axle water bowser CHADC8000VL

chassis-mounted

Summary
Road-legal single-axle trailer with 8,000 L liquid fertilizer tank. Supplied on EFA C120 chassis. Article reference: CHADC8000VL.

Advantages

• Capable of operating on varied terrains
• Suitable for transport of water, liquid fertilizers and non-hazardous wash waters
• Delivery to site available
• Chassis painted; galvanizing available as option
• Fixed drawbar or sprung drawbar optional
• Support leg: hydraulic (optional)
• Service braking: hydraulic (standard)

Details
- Robust axle mounting for fast and reliable fixation
- Optional Ball Baffle anti-surge system to reduce fluid surge for safer towing

Important remark
Maximum permitted speed: 25 km/h. For tank volumes ≥ 8,000 L, installation of Ball Baffles is mandatory when operating above 25 km/h. Use of a tank ≥ 8,000 L above 25 km/h without Ball Baffles voids warranty coverage for related damages.

Technical sheet
Key: C
Capacity (L): 8000
Article number: CHADC8000VL

Dimensions and main data
Overall length: 4.76 m
Overall width: 2.54 m
Chassis height: 0.79 m
GVW (PTAC): 11,500 kg
Service brake: Hydraulic (two-line pneumatic brake available depending on configuration)
Drawbar type: Fixed (sprung drawbar optional)
Wheels / tyres: 385/65 R22.5
