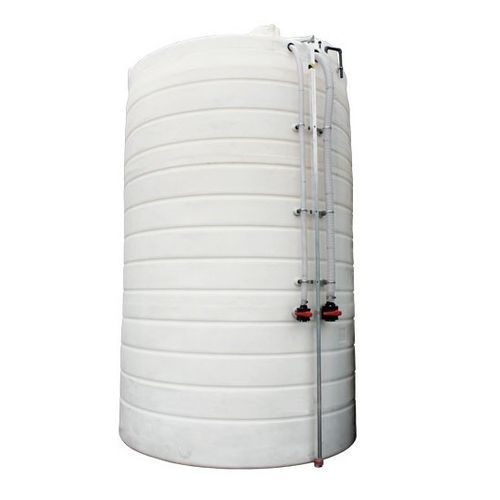

Multi-purpose tank DPR25000PF

liquid fertilizerverticalpolyethylene

Overview
SECURITANK 25 POWERFREE. NO ELECTRICITY REQUIRED. The rigid double-wall PowerFree tank can be positioned close to your production lines. The system consists of a polyethylene containment shell housing a rigid inner tank, eliminating the need for a separate retention basin.

Key benefits

• Model with rigid inner wall
• 4 handling points
• High-definition UV treatment (2x protection vs standard polyethylene)
• Mechanical leak indicator
• Mechanical level gauge
• Reinforcement ribs for increased rigidity
• Filling hose 3'' and suction hose 2''
• 3'' and 2'' valves supplied
• Non-return valve
• Versatile: designed for high-density liquids up to 1.4 kg/dm3 (e.g. liquid fertilizer, molasses, brine)
• Welding system ensuring total tightness and optimal strength
• Inner wall secured by the space between the two tanks

Technical data
Height (m) : 5.100
Width (m) : 0.000
Depth (m) : 0.000
Weight (kg) : 1520.000
Diameter (m) : 2.980
Key : C
Capacity (L) : 25000

Characteristics / technical specifications

• Reference : DPR25000PF
• Model : SECURITANK 25 POWERFREE
• Type : Rigid double-wall tank (integrated polyethylene containment)
• Capacity : 25000 L
• Height : 5.100 m
• Diameter : 2.980 m
• Weight : 1520 kg
• Handling points : 4
• Hoses supplied : filling 3'' / suction 2''
• Valves supplied : 3'' and 2''
• Leak indicator : mechanical
• Level gauge : mechanical
• UV protection : high-definition treatment (x2 vs standard PE)
• Admitted liquid density : up to 1.4 kg/dm3
• Welding : system ensuring optimal tightness and strength
