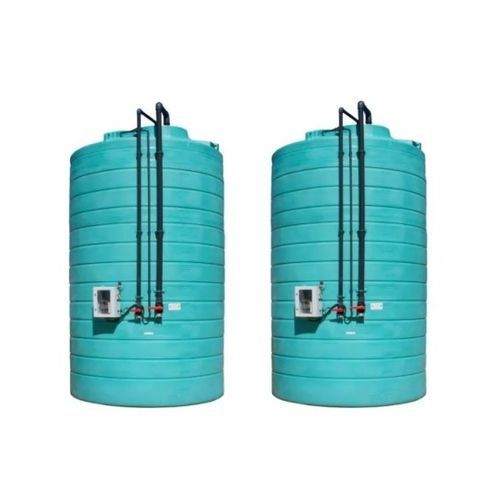

Liquid fertilizer tank DPR50000

verticalpolyethyleneUV-resistant

Presentation
The only 50,000 L double-wall tanks where, in case of overflow, the product spills between the two walls and not to the outside. System made of two 25,000 L tanks with integrated polyethylene bund, eliminating the need for an additional containment tray. Solution designed for storage of liquid fertilizers and other high-density solutions, ensuring reliability and safety.

Key features

• Electrical cabinet integrating a leak detector, a fill alarm and an electronic gauge (installation required before use)
• Four lifting points for easier handling
• High-performance UV protection (twice the resistance of standard polyethylene)
• Leak detector with integrated alarm
• Structure with rigid inner wall
• Level warning with integrated audible signal
• Fill point accessible at ergonomic height
• Enhanced protection against rodents and vandalism
• Valves available in 3″ and 2″
• Versatility: suitable for storage of high-density solutions (up to 1.4 kg/dm³) such as liquid fertilizers, molasses or brine
• Welds providing perfect tightness and maximum strength of the inner double wall

Product benefits

• Installation cost optimization: ready-to-use integrated bund reducing civil engineering requirements
• Priority on safety to protect installations and the environment
• Product homogeneity maintained: stainless steel pump (on double-wall tanks) enabling constant mixing and preventing nozzle clogging
• Ease of movement: dimensions and handling eyes designed to move the tank without abnormal transport permits depending on the site
• Convenient access to valves, positioned at ergonomic height for simple and safe control
• Optional fill limiter to prevent overflows

Technical specifications

• Product reference: DPR50000
• Height (m): 5.100
• Width (m): 5.96
• Depth (m): 2.98
• Weight (kg): 3600
• Key: C
• Capacity (L): 50000 (2 x 25000 L)
• Retention material: polyethylene (integrated bund)
• Recommended use: storage of liquid fertilizers and solutions up to 1.4 kg/dm³
