Single-axle water bowser CHADC5001VL

chassis-mounted

Presentation

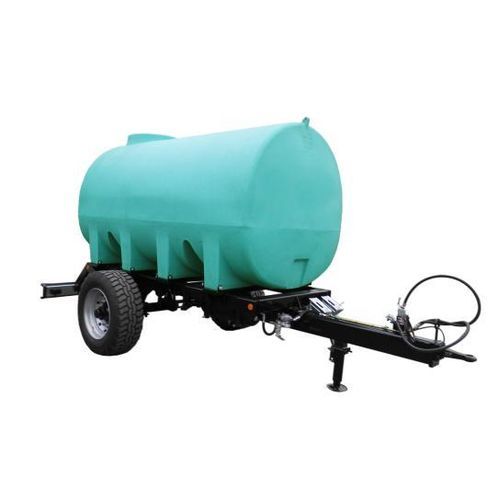

Rolling chassis equipped with a 5000 L transport tank for liquid fertilizer and water. Road‑approved (ABE) up to 25 km/h; price on request.

Key features

• Designed for operation on varied terrain
• Suitable for transporting water, liquid fertilizer and non‑hazardous process liquids
• Delivery to site available on request
• Chassis painted; galvanised finish available as an option
• Fixed or spring drawbar selectable
• Optional hydraulic support leg
• Hydraulic service braking system
• Reliable and quick axle fixation
• Anti‑sloshing Ball Baffle system available

Dimensions and main characteristics
Overall length: 3.94 m
Overall width: 2.53 m
Chassis height: 0.67 m
GVW (PTAC): 7,500 kg
Service brake: hydraulic
Drawbar type: fixed (option: spring)
Wheels/tyres: 12.5/80-15.3, 12 PR

Technical specifications

• Net weight (kg): 7,500
• Key: C
• Capacity (L): 5,000
• Chassis model: EFA C120 single‑axle (12 t rated, depending on configuration)
