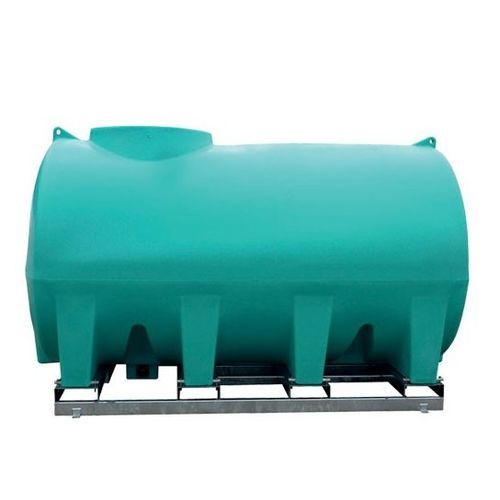

Multi-purpose tank DC8000VTC

liquid fertilizerhorizontalpolyethylene

Overview
DURACUVE 8000. Total-drain transport tank 8000 L. Supplied with polypropylene DN50 valve and fitted bulkhead / manhole Ø462.

Key points

• Reliable, quick axle fixation system — the safest and most effective method to secure a tank on a chassis.
• High-definition UV treatment for extended service life.
• Versatile: accepts various high-density liquids (up to 1.4 kg/dm3) such as liquid fertilizer, molasses, brine.
• High-quality semi-opaque polyethylene construction.
• Anti-surge system to reduce tractor wear by damping waves.

Warranty
Tank: 5 years warranty; parts: 1 year warranty, according to general terms and conditions of sale.

Note
Speed limited to 25 km/h. Above this speed, installation of Ball Baffles is mandatory for tank volumes ≥ 8000L. Use of a tank ≥ 8000L above 25 km/h without Ball Baffles voids the warranty.

Technical specifications

• Product reference: DC8000VTC
• Model: DURACUVE 8000
• Capacity: 8000 L
• Height (m): 2.000
• Width (m): 1.820
• Depth (m): 3.230
• Weight (kg): 490.000
• Key: A
• Material: High-quality semi-opaque polyethylene
• Supplied with: polypropylene DN50 valve and fitted bulkhead / manhole Ø462
• Compatible liquids: up to 1.4 kg/dm3 (liquid fertilizer, molasses, brine, etc.)
• Fixation system: axle fixation
• Anti-surge system: Ball Baffles recommended for speeds > 25 km/h on volumes ≥ 8000L
