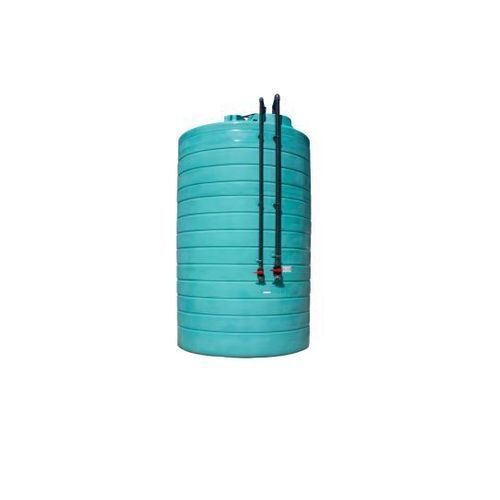

Liquid fertilizer tank DPR25000ECO

verticalpolyethyleneUV-resistant

Overview
SECURITANK 25 ECO: This system consists of a polyethylene containment tray (secondary wall) housing a rigid primary tank. The double-wall design ensures that in case of overflow or leak the fertilizer is contained between the walls and not released to the environment.

Key benefits

• Ready-to-use solution with integrated retention, reducing civil engineering costs
• Rigid inner tank model for mechanical stability
• 4 lifting points for safe handling and relocation
• High-definition UV treatment providing twice the protection of standard polyethylene
• Man-height filling for ergonomic and safe operations
• Watertight retention, resistant to external elements (rain, frost)
• Integrated 3" and 2" valves for transfer and filling
• Suitable for high-density liquids up to 1.4 kg/dm³ (liquid fertilizers, molasses, brine). Other liquids possible after prior assessment

Product highlights

• Secure and homogeneous product management: integrated stainless-steel pump ensures mixing to prevent nozzle clogging on sprayers
• Transportable without exceptional convoy thanks to polyethylene flexibility and reinforced lifting points
• Easy access to the valve (valve at man-height) to prevent overfilling during loading
• Optional fill limiter available to alert when the tank reaches full capacity
• Equipped with a leak detection system compliant with current regulations
• Secure stock management: electronic level gauge placed inside the tank (no external piping)

Technical data
Height (m): 5100
Diameter (m): 3000
Capacity (L): 25,000

Features / technical specifications

• Model: SECURITANK 25 ECO
• Rigid inner wall and outer retention wall
• Welding system ensuring full tightness and optimal strength
• Protected inner wall with the interstitial space between tanks
• 4 lifting points
• High-definition anti-UV treatment (double protection vs standard polyethylene)
• Ergonomic man-height filling
• Watertight retention, insensitive to water and freezing
• 3" and 2" valves
• Compatibility with liquids up to 1.4 kg/dm³ (liquid fertilizers, molasses, brine)
• Integrated stainless-steel pump for stirring and mixing
• Options: fill limiter, leak detection system, internal electronic level gauge
