Liquid fertilizer tank PS80

flexiblefabricpolyester

Presentation

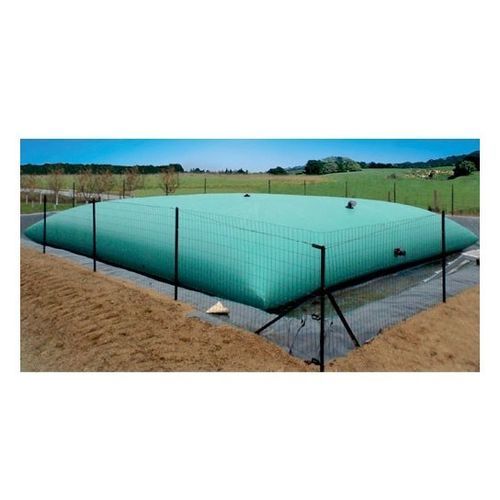

FLEXTANK 80 — flexible tank for liquid fertilizer, 80 m3 capacity, designed for on-site agricultural storage.

General characteristics
The tank is manufactured from high-strength polyester fabric coated with PVC on both faces and assembled by high-frequency welding for leak-tight seams.

Practical

• Lightweight and foldable
• Fast and simple installation (example: < 4 h for a 50 m3 unit)
• Adaptable to available site footprint
• Storage in useful volume without civil works

Materials and treatment
Inner fabric: 100% high-strength polyester
Fabric weight: 1300 g/m2
Operating temperature: -25°C to 50°C
Treatment: integral anti-UV formulation

Equipment and safety
Degassing valve with 150 mm flap
Discharge valve DN50 with fire brigade coupling

Additional advantages

• Low initial investment
• No civil engineering required
• No building permit in most cases
• Eligible for subsidies

Technical sheet
Height (m) : 1.500
Width (m) : 7.400
Depth (m) : 10.250
Weight (kg) : 177.000
Key : C
Capacity (L) : 80000

Characteristics / technical specifications

• Product reference: PS80
• Commercial name: FLEXTANK 80
• Capacity: 80,000 L
• Dimensions: H 1.500 m × W 7.400 m × D 10.250 m
• Empty weight: 177 kg
• Key: C
• Inner fabric: 100% high-strength polyester
• Fabric weight: 1300 g/m²
• Operating temperature: -25°C to 50°C
• Integral anti-UV treatment
• Degassing: flap Ø150
• Valve: DN50 + fire brigade coupling
• Warranty: 10 years
