Liquid fertilizer tank DC5001SVT

overheadverticalpolyethylene

Presentation

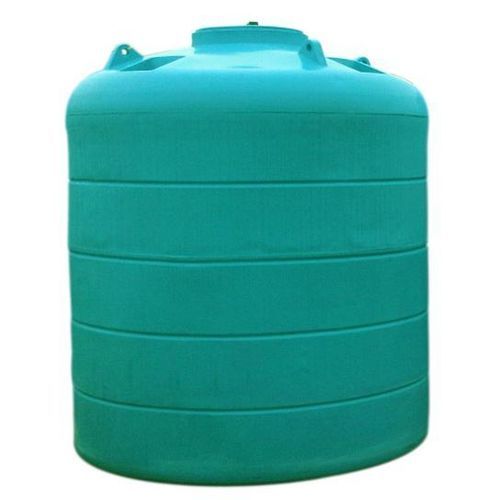

5000 L turquoise storage tank for fertiliser. DURACUVE 5000 V. Monobloc aboveground tank in polyethylene, designed for storage of liquid fertilisers and high-density solutions (up to 1.4 kg/dm3). Made in France. Tank warranty: 10 years; parts: 1 year (according to general sales conditions).

Main features

• High-definition UV protection for extended life and preserved product quality
• Rigid polyethylene material: improved resistance to mechanical damage (cutting tools, rodents) compared with flexible materials
• Accepts high-density solutions (up to 1.4 kg/dm3) such as liquid fertiliser, molasses, brine; other liquids possible subject to prior assessment
• Semi-automatic lid with vent for gas ventilation
• Outlet diameter: DN80 (stainless steel) with DN50 reducer and DN50 polypropylene valve
• Optional float level sensor
• Cleaning facilitated by manhole access
• Lifting lugs allow moving/positioning the tank empty without crane
• Ribbed design for improved rigidity
• Factory-mounted bulkhead penetration with Teflon to ensure tightness
• Smooth interior to ease cleaning and extend nozzle life
• Compact footprint (typical diameters for range: 1.9 to 3 m depending on capacity)

Benefits

• Direct visual liquid level indication possible
• Lid attached to tank to ensure ventilation and prevent lid loss
• Lightweight with favourable weight/volume ratio for handling and installation
• Monobloc rotomoulded construction with reinforced corners for extended service life
• Wide volume range available (e.g. from 4,900 to 25,000 L to match needs)

Technical specifications

• Model: DURACUVE 5000 V
• Capacity: 5000 L
• Height: 2.280 m
• Diameter: 1.890 m
• Weight: 160 kg
• Key: A
• Material: polyethylene (monobloc, rotomoulded)
• Maximum admissible liquid density: up to 1.4 kg/dm3
• Outlet: DN80 (stainless steel) with DN50 reducer and DN50 valve (PP)
• Lid: semi-automatic, with vent
• Cleaning: manhole access, smooth interior
• Options: float sensor
• Handling: integrated lifting lugs (allow empty movement without crane)
• Bulkhead penetration: factory-mounted and supplied (Teflon)
• External treatment: high-definition UV protection
• Manufacture: France
• Tank warranty: 10 years (parts: 1 year, according to general sales conditions)
