Multi-purpose tank DPR25000

liquid fertilizerverticalpolyethylene

Overview

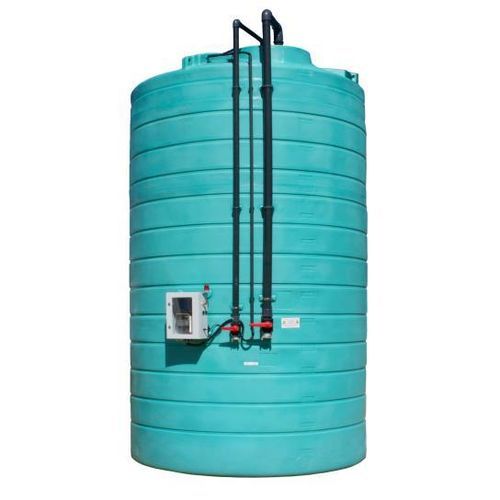

SECURITANK 25 Premium
This system consists of a polyethylene containment vessel housing a rigid tank. No separate retention basin is required.

Main features

• Model with electrical cabinet including a high-level alarm, leak detector and electronic gauge (to be installed before use)
• Model with rigid inner wall
• 4 lifting/handling points
• High-definition UV treatment providing twice the protection of standard polyethylene
• Leak detector with integrated alarm
• Fill-level alarm with integrated signal
• Top-fill design (filling at human height)
• Optimal protection against rodents and vandalism
• 3" and 2" valves
• Versatile: accepts various high-density solutions (up to 1.4 kg/dm3) such as liquid fertilizers, molasses, brine; may be suitable for other liquids (prior assessment recommended)
• Welded system ensuring full tightness and optimal strength
• Inner wall fully secured thanks to the space between the two tanks

Product benefits
- Reduce civil engineering costs with a ready-to-install solution with integrated retention
- Secure solution; product is agitated and mixed by the tank's stainless-steel pump
- Transportable without exceptional convoy thanks to polyethylene flexibility and robustness, lifting lugs and dimensions
- Valve at human height to prevent sprayer overflow
- Optional fill limiter to alert during unloading and avoid product loss
- Equipped with a leak detection system compliant with current standards to protect the environment
- Electronic level gauge located inside the tank (no external piping)

Technical data
Height (m): 5.100
Width (m): 0.000
Depth (m): 0.000
Weight (kg): 1520.000
Diameter (m): 2.980
Key: C
Capacity (L): 25000

Technical specifications

• Product reference: DPR25000
• Commercial model: SECURITANK 25 Premium
• Capacity: 25000 L
• Height: 5.100 m
• Diameter: 2.980 m
• Weight: 1520 kg
• Key: C
• Valves: 3'' and 2''
• Material: UV-treated polyethylene (reinforced protection)
• Options: electrical cabinet with alarms, electronic gauge, leak detector, stainless-steel pump (agitation)
• Compatible liquids: density up to 1.4 kg/dm3 (liquid fertilizer, molasses, brine)
