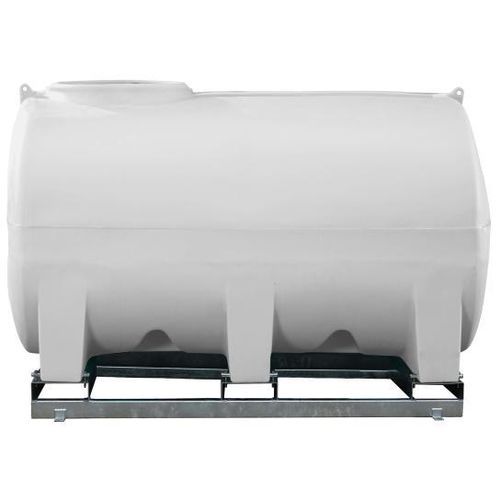

Multi-purpose tank DC5001VTC-B

liquid fertilizerhorizontalpolyethylene

Description
DURACUVE 5000
Total-drain transport tank 5000 L

• Reliable and quick axle-pin mounting system: secure and effective solution to fix a tank on a chassis.
• High-definition UV treatment for extended service life.
• High-quality semi-opaque polyethylene.
• Versatile: accepts high-density liquids up to 1.4 kg/dm3 (e.g., liquid fertilizer, molasses, brine).
• Anti-surge system to reduce tractor wear by damping waves.

Included
Supplied with polypropylene DN50 valve fitted and bulkhead / manhole Ø 462 mm

Warranty
Tank warranty 3 years and parts 1 year according to terms and conditions.

Technical data (excerpt)
Height (m) : 1.430
Width (m) : 2.000
Depth (m) : 2.450
Weight (kg) : 330.000
Key : A
Capacity (L) : 5000

Characteristics / technical specifications

• Product reference: DC5001VTC-B
• Model / designation: DURACUVE 5000
• Type: Total-drain tank for transport
• Capacity: 5000 L
• Material: High-quality semi-opaque polyethylene
• Valve supplied: Polypropylene DN50 (fitted)
• Manhole: Ø 462 mm
• Dimensions (H x W x D): 1.430 m x 2.000 m x 2.450 m
• Empty weight: 330 kg
• Compatible liquids: up to 1.4 kg/dm3 (liquid fertilizer, molasses, brine, etc.)
• Mounting system: axle-pin mounting
• Protection: high-definition UV treatment
• Anti-surge system: included to reduce sloshing and vehicle wear
• Warranty: tank 3 years, parts 1 year (according to terms and conditions)
