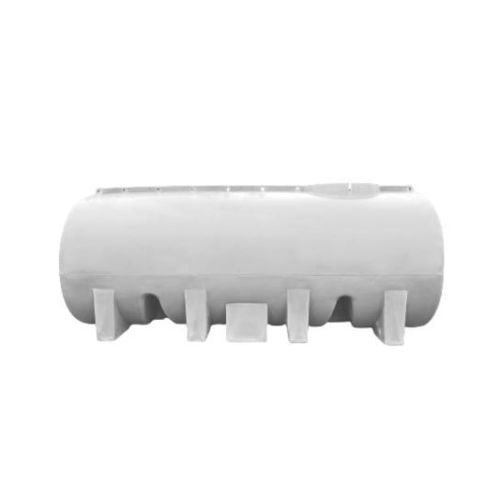

Liquid fertilizer tank DC10001VL-B

horizontalstainless steelUV-resistant

Summary
Tank guaranteed 5 years and parts guaranteed 1 year. DURACUVE 10000. Fertilizer transport tank 10,000 litres. "Drive safely: tank stability is ensured by a particularly low center of gravity and low overall height." Fitted with a stainless steel 3-inch tank penetration and an 80 mm stainless steel valve.

Key features

• Widest range and lowest height on the market for maximum safety optimisation during transport.
• Easier handling when empty: straps can pass through handling rings designed for this purpose.
• Versatile: accepts various solutions (liquid fertiliser, molasses, brine…) up to a density of 1.4 kg/dm3.
• Adapts to any platform (tipping body or flatbed) thanks to its compact footprint.
• Rear stop and secure fixation system with robust pivot axle (fixing axles optional) ensuring maximum stability during use.
• UV15 protection, twice as resistant as standard UV8 polyethylenes, improving impact and UV resistance.
• Cleaning made easier thanks to a manhole.
• Lid with protective moulding and stiffened base for improved lifetime and tightness.
• Anti-surge design to reduce tractor wear.
• Equipped with a lid and a complete stainless steel drainage system for durability and easy cleaning.
• Reinforced design specifically on the dome for better resistance to internal pressures and external stresses.

Options

• Chassis for tanks 10000 L to 13000 L
• BallBaffle 370
• Ecospray 60 L sprayer

Technical data
Width (m) : 4.190
Depth (m) : 1.740
Weight (kg) : 550
Diameter (mm) : 2000
Capacity (L) : 10000

Important remark
NB: Speed limited to 25 km/h. Above this, installation of Ball Baffles is mandatory for tank volumes ≥ 8000 L. Use of a tank ≥ 8000 L above 25 km/h without Ball Baffles will void the warranty.

Characteristics / technical specifications

• Reference: DC10001VL-B
• Capacity: 10000 L
• Width: 4.190 m
• Depth: 1.740 m
• Diameter: 2000 mm
• Empty weight: 550 kg
• Materials: reinforced polyethylene (tank); tank penetration and valve in stainless steel
• UV protection: UV15 (twice the resistance of UV8)
• Maximum liquid density: 1.4 kg/dm3
• Stainless elements: 3-inch tank penetration, 80 mm valve
• Accessibility: manhole for cleaning
• Design: reinforced dome, moulded lid and stiffened base
