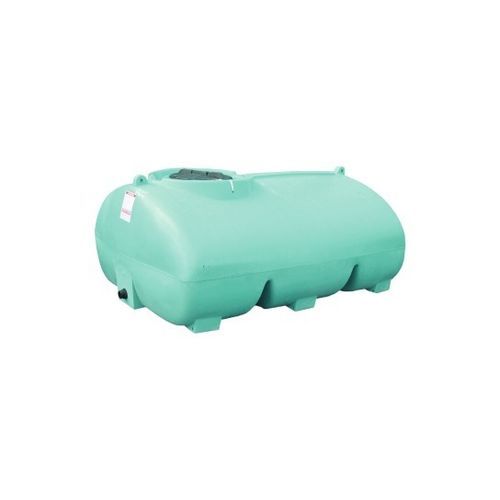

Liquid fertilizer tank DC2001VL

horizontalpolyethylenesmooth-wall

Overview
DURACUVE 2000
2000-litre transport tank designed for the safe transfer of liquid fertilizers and similar high-density agricultural liquids.
Supplied with a fitted tank flange and DN50 polypropylene ball valve with PTFE sealing / manway Ø462. Low overall height and a low centre of gravity ensure vehicle stability during transport.

Key points

• Reduce vehicle wear: anti-surge system breaks the liquid wave and minimizes dynamic loads on the vehicle.
• High-definition UV protection providing twice the UV resistance of standard polyethylene.
• Versatile: able to accommodate various high-density solutions (up to 1.7 kg/dm³) including liquid fertiliser, molasses and brine.
• Semi-opaque, high-quality polyethylene construction.
• Self-cleaning access via the manway. Semi-automatic ventilated lid for safe operations.
• Move and install the tank empty without a crane using integrated lifting eyes.
• Graduation allows consumption visualisation in bright light conditions.
• Tank flange and valve included. Flange delivered assembled; valve supplied unmounted to protect the product during transport.
• Reliable and fast chassis attachment using an axle fixing system.
• Made in France.
• Tank warranty: 5 years. Parts warranty: 1 year (terms and conditions apply).

Benefits

• Accepts a wide range of liquids (liquid fertiliser, molasses, brine, etc.) up to 1.7 kg/dm³.
• UV-treated surface for extended service life and preserved product quality.
• Direct level reading via external graduation.
• Easy handling and installation without crane thanks to lifting eyes.
• Semi-automatic lid secured to the tank to maintain ventilation and prevent loss.
• Fast and reliable axle-based fixing system.
• Compact footprint (width 1.54 m) to fit on various carriers (flatbed or tipper).
• Smooth interior finish to ease cleaning and prevent residue build-up.
• Reduced tractor wear through the anti-surge system (from 2000 L).

Technical specifications

• Model: DURACUVE 2000
• Reference: DC2001VL
• Capacity (L): 2000
• Height (m): 0.930
• Width (m): 1.540
• Depth (m): 2.100
• Weight (kg): 100.000
• Manway: Ø 462 mm
• Flange: DN50 (polypropylene)
• Valve: ball valve DN50 with PTFE sealing (supplied unmounted)
• Material: plasticised-free polyethylene with HD UV protection
• Max. recommended liquid density: up to 1.7 kg/dm³
• Origin: France
• Warranty: 5 years (tank), 1 year (accessories)
