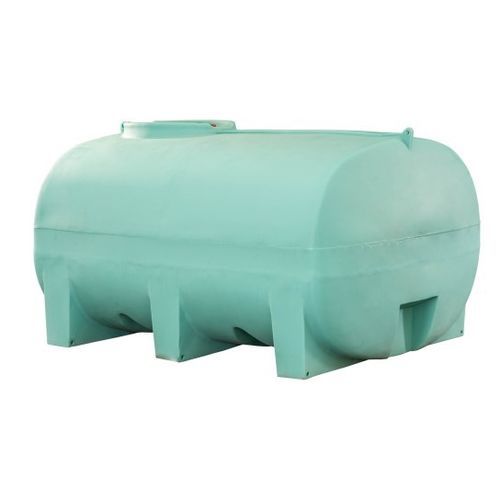

Liquid fertilizer tank DC5001VL

horizontalpolyethyleneUV-resistant

Overview
DURACUVE 5000
Transport tank for liquid fertilizer, 5000 litres. Supplied with pre-assembled bulkhead and DN50 polypropylene valve (Teflon).

Advantages

• Reduces vehicle wear thanks to integrated anti-slosh design (baffle system).
• High-definition UV treatment providing twice the protection of standard polyethylene for extended service life.
• Versatile: accepts high-density solutions (up to 1.4 kg/dm3) such as liquid fertilizer, molasses or brine.
• Semi-opaque, premium-grade polyethylene.

Use and ergonomics

• Easy cleaning via manway; semi-automatic lid with vent.
• Move and install empty without crane thanks to lifting lugs.
• Graduation visible in strong light to monitor consumption (except models DC10000VL and DC13000VL).
• Valve and bulkhead included: bulkhead assembled, valve supplied unassembled to protect it during transport.
• Reliable and quick axle fixation system for chassis mounting.
• Made in France.
• Tank warranty 5 years; parts warranty 1 year.

Technical sheet (excerpts)
Height (m) : 1.430
Width (m) : 2.000
Depth (m) : 2.500
Weight (kg) : 240.000
Key : A
Capacity (L) : 5000

Characteristics / technical specifications

• Manufacturer reference: DC5001VL
• Nominal capacity: 5000 L
• Material: high-quality, semi-opaque, UV-treated polyethylene
• Maximum recommended volumetric density: liquids up to 1.4 kg/dm3
• Dimensions: H 1.430 m × W 2.000 m × D 2.500 m
• Empty weight: 240 kg
• Supplied equipment: assembled bulkhead, DN50 polypropylene valve (supplied unassembled)
• Integrated anti-slosh system
• Axle fixation system for chassis mounting
• Access sleeve: manway with semi-automatic lid and vent
• Origin: Made in France
• Warranty: 5 years (tank) / 1 year (parts)
