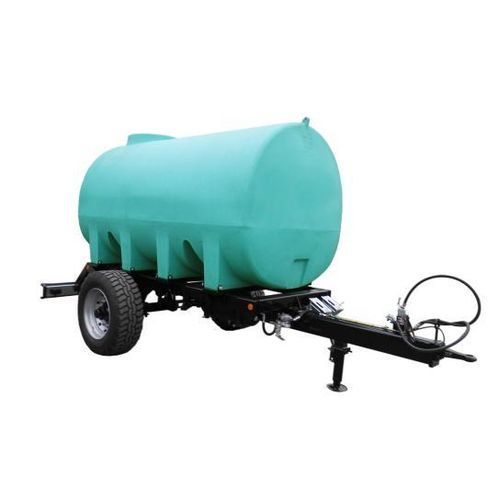

Single-axle water bowser CHADC4001VL

chassis-mounted

Description
Road‑approved chassis fitted with a 4000 L transport tank for agricultural liquids (liquid fertilizer, water, clean effluents). DEKRA/ABE approval available for speeds up to 25 km/h. Suitable for on‑road transport and access to varied terrains; delivery on request.

Uses and advantages

• Capable of operating on varied ground types
• Ideal for transporting water, liquid fertilisers and clean agricultural effluents
• Delivery and ordering directly to site available
• Chassis painted; galvanised finish available as an option
• Fixed or sprung drawbar available as option
• Hydraulic support jack available as option
• Service braking: hydraulic

Dimensions and main data
Overall length: 4.76 m
Overall width: 2.54 m
Chassis height: 0.79 m
Maximum authorised mass (PTAC): 7,500 kg
Service brake: Hydraulic
Drawbar type: Fixed
Wheels / tyres: 12.5/80-15.3

Technical characteristics / specifications

• Weight (kg): 7,500
• Key: C
• Capacity (L): 4000
• Product reference: CHADC4001VL
• Overall length: 4.76 m
• Overall width: 2.54 m
• Chassis height: 0.79 m
• Maximum authorised mass (PTAC): 7,500 kg
• Service brake: Hydraulic
• Drawbar type: Fixed
• Wheels / tyres: 12.5/80-15.3
• Road approval: DEKRA / ABE up to 25 km/h (where applicable)
• Price excl. VAT indicated: 11,898.00 EUR (final price on request)
