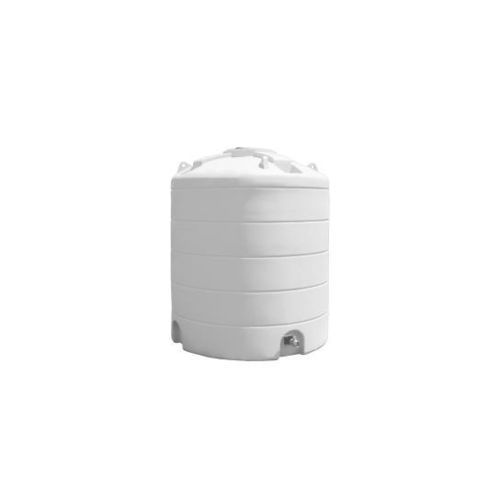

Multi-purpose tank DC6001SVT-B

liquid fertilizerverticalpolyethylene

Overview
6000 L white fertiliser storage tank.

Summary
DURACUVE 6000 V — 6000-litre fertiliser tank. Manufactured in rigid polyethylene, suitable for storage of nitrogen-based liquids and high-density solutions up to 1.4 kg/dm3. Supplied with Polypropylene DN50 valve and bulkhead fitting installed (Teflon).

Product features

• High-definition UV treatment for improved service life and unchanged quality of the stored product
• Rigid material: resistant to cuts and rodents
• Versatile: suitable for liquid fertilisers, molasses, brine; may be suitable for other liquids subject to prior assessment
• Lid with vent
• Drain diameter: DN80 (stainless) with DN50 reduction + DN50 valve (Polypropylene)
• Float available as an option
• Cleaning facilitated by manhole
• Integrated handling rings for movement and dry installation without a crane
• Ribbed for improved rigidity
• Bulkhead fitting installed by professionals to ensure optimal sealing
• Made in France
• Tank warranty 5 years; parts warranty 1 year according to general terms of sale

Technical sheet
Height (m) : 2.110
Weight (kg) : 160.000
Diameter (m) : 2.280
Key : A
Capacity (L) : 6000

Technical specifications

• Product reference: DC6001SVT-B
• Model: DURACUVE 6000 V
• Usable capacity: 6000 L
• Height: 2.110 m
• Diameter: 2.280 m
• Empty weight: 160 kg
• Material: rigid polyethylene treated against UV
• Admissible liquid density: up to 1.4 kg/dm3
• Drain: DN80 stainless + DN50 reduction + DN50 valve (PP)
• Options: float
• Accessories supplied: Polypropylene DN50 valve and bulkhead fitting installed (Teflon)
• Cleaning: manhole
• Handling: integrated rings (dry installation without crane)
• Warranty: tank 5 years, parts 1 year (according to general terms of sale)
