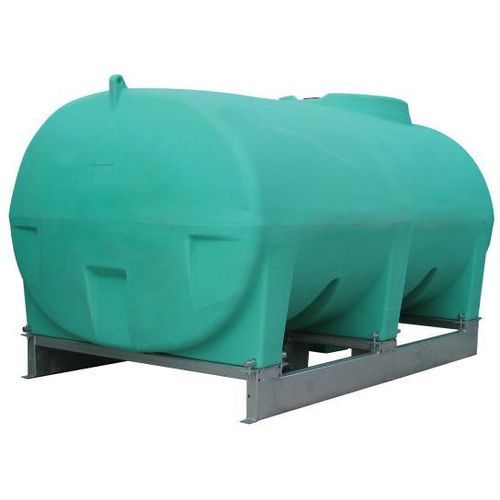

Liquid fertilizer tank DC2501VTC

horizontalpolyethyleneUV-resistant

Presentation
Total-drain transport tank, 2500 L. Supplied with DN50 polypropylene valve pre-mounted and mounted tank penetration.

Description

• Axle fixation system for reinforced mounting stability.
• Manufactured in polyethylene with UV-treatment for extended service life.
• Designed for liquids with density up to 1.4 (e.g. liquid fertilizer, brine, molasses).
• Anti-slosh system (Ball Baffle) reduces liquid surge and limits vehicle wear during transport.
• Tank warranty: 5 years; parts warranty: 1 year (subject to terms and conditions).

Key benefits

• Sump located under the tank enabling complete drainage.
• Helps extend the service life of your sprayer pump.
• Galvanized frame for corrosion resistance.
• Forklift/tractor fork pockets for easy handling.
• Ball Baffle anti-slosh system for steadier transport behavior.

Technical data
Height (m) : 1.100
Width (m) : 1.540
Depth (m) : 2.100
Empty weight (kg) : 190
Manhole Ø (mm) : 455
Key : 6027
Capacity (L) : 2500

Characteristics / technical specifications

• Commercial model: DURACUVE 2500
• Type: Total-drain tank, transport tank
• Nominal capacity: 2500 L
• Material: Polyethylene (UV-treated)
• Valve supplied: Polypropylene DN50 (pre-mounted)
• Sump for total drainage: integrated
• Anti-slosh system: Ball Baffle (reduces surge and wear)
• Frame: galvanized
• Fork pockets: yes (for tractor/forklift forks)
• Dimensions (H x W x D): 1.100 m x 1.540 m x 2.100 m
• Empty weight: 190 kg
• Maximum liquid density compatible: 1.4
• Warranty: tank 5 years, parts 1 year (subject to terms and conditions)
• Tank manhole: Ø 455 mm
• Tank color: light green (6027)
• Internal reference: DC2501VTC
