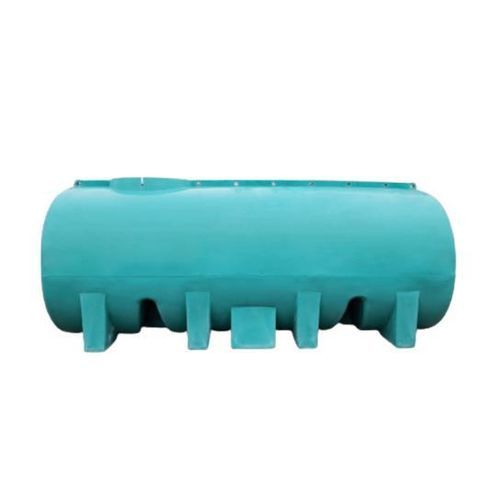

Liquid fertilizer tank DC10001VL

horizontalUV-resistanttransport

Summary
DURACUVE 10000
Transport tank for liquid fertilizer with 10,000 L capacity. Low centre of gravity and reduced height for optimized stability during transport. Fitted with a 3 in stainless steel bulkhead and an Ø80 stainless steel valve.

Main features

• Capacity: 10,000 L
• Bulkhead: 3 in stainless steel
• Valve: Ø80 stainless steel
• Manhole for internal cleaning
• Lid and drainage system fully stainless steel
• UV15 protection (improved UV and impact resistance)
• Reinforced dome design for higher resistance to internal pressure and external constraints
• Anti-surge design and option to install Ball Baffles (reduces surge and optimizes braking forces)
• Handling rings for strap lifting
• Compact footprint, adaptable to tipper or flatbed
• Dorsal stop and axle fixation system (fixing axles optional)

Benefits

• Very low centre of gravity and reduced height for enhanced transport stability
• Versatile: compatible with various fluids (liquid fertilizer, molasses, brine…) up to density 1.4 kg/dm3
• Reduces tractor wear thanks to anti-surge design
• Increased durability due to stainless components and reinforced UV protection
• Easy maintenance and cleaning via manhole

Safety / warranty information
Tank warranty: 5 years; parts warranty: 1 year. Note: maximum permitted speed 25 km/h. For tanks ≥ 8,000 L, Ball Baffles installation is mandatory above 25 km/h. Use of a tank ≥ 8,000 L above 25 km/h without Ball Baffles voids the warranty.

Technical data
Width (m) : 4.190
Depth (m) : 1.740
Diameter (m) : 2000
Capacity (L) : 10000

Characteristics / technical specifications

• Product reference: DC10001VL
• Model: DURACUVE 10000
• Capacity: 10 000 L
• Width: 4.190 m
• Depth: 1.740 m
• Diameter: 2000 mm
• Materials / fittings: 3 in stainless bulkhead; Ø80 stainless valve; stainless lid and drainage
• UV protection: UV15 (higher than standard UV8)
• Cleaning: integrated manhole
• Maximum liquid density: compatible up to 1.4 kg/dm3
• Warranty: tank 5 years, parts 1 year
• Speed limitation: 25 km/h (Ball Baffles mandatory above 25 km/h for volumes ≥ 8,000 L)
• Use: transport of liquid fertilizer, molasses, brine, etc.
• Adaptation: designed for tipper or flatbed; handling rings supplied
