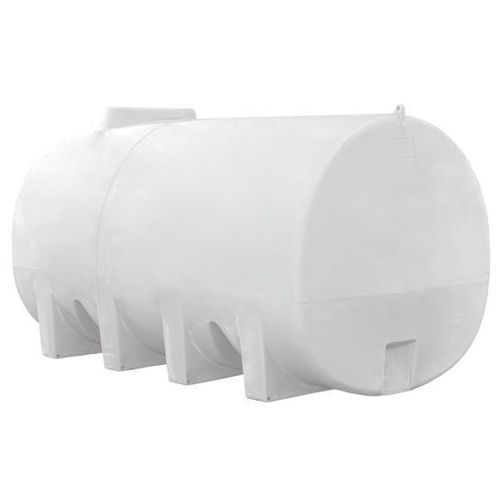

Liquid fertilizer tank DC8000VL-B

horizontalpolyethyleneUV-resistant

Description
- DURACUVE DC8000VL-B
- 8000 L transport tank for liquid fertilizer, designed for filling sprayers and bulk transfer.
- Save time: one 8000 L tank can refill two 3–4 000 L sprayers without multiple trips.
- Supplied with pre-assembled tank penetration and polypropylene DN50 valve (valve delivered unassembled) | PTFE.

Features and benefits

• Reduced tractor wear thanks to anti-surge system (available from 5000 L).
• High-definition UV treatment: twice the UV protection of standard polyethylene for extended service life.
• Versatile: compatible with high-density liquids (up to 1.4 kg/dm³) such as liquid fertilizer, molasses, brine.
• High-quality, semi-opaque polyethylene construction.
• User-cleanable via Ø 462 mm manhole; semi-automatic vented lid.
• Easy transport and installation when empty without crane, using integrated lifting lugs.
• Graduated level indicator for visibility in strong light (except DC10000VL and DC13000VL).
• Included penetration and valve: penetration pre-assembled, valve shipped unassembled to ensure product integrity on delivery.
• Rapid-MOUNT reliable and quick fixation system: integrated axles for fast installation without straps.
• Tank warranty: 3 years; accessories: 1 year.
• Manufactured in France.

Additional product benefits

• Universal mounting: compact footprint adapted to tippers and flatbeds.
• Secure fixing: Rapid-MOUNT system with integrated axles for quick installation without straps.
• Improved stability: low center of gravity and reduced height for safe road circulation.

Safety / operating instructions
- Maximum permitted speed: 25 km/h. For tanks ≥ 8000 L and speeds above 25 km/h, installation of BallBaffles is mandatory. Use of a tank ≥ 8000 L above 25 km/h without BallBaffles voids warranty for related damages.

Technical specifications

• Capacity: 8000 L
• Height: 1.820 m
• Width: 1.820 m
• Depth: 3.230 m
• Weight: 330 kg
• Key: A
• Product reference: DC8000VL-B
• Valve: Polypropylene DN50 (delivered unassembled) | PTFE
• Penetration: pre-assembled
• Manhole: Ø 462 mm
• Max. liquid density: 1.4 kg/L
• Lifting lugs: 2 for handling the empty tank
• Feet: self-supporting feet integrated into the tank body (mounting with fastening bolts possible)
• Color: White (RAL 9010)
• Warranty: 3 years on the tank, 1 year on accessories
• Speed limit: 25 km/h (see mandatory BallBaffles requirement)
