Liquid fertilizer tank DPR100000

verticalpolyethyleneUV-resistant

OverviewFertilizer tank 100,000 L double-wall with integrated polyethylene retention – no separate containment basin required. 10-year warranty, made in France.

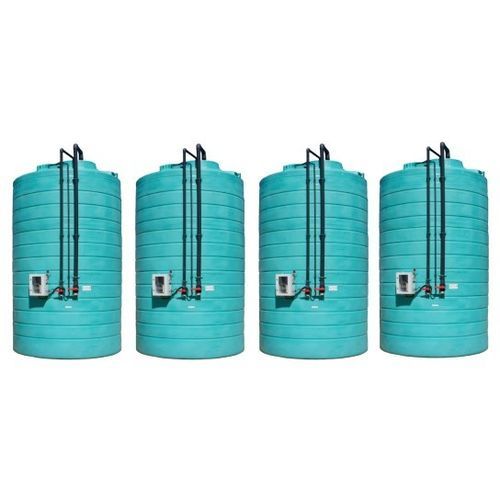

Detailed descriptionDesign ensures that in case of overflow, liquid drains between the two walls rather than outside. Composed of four 25,000 L modules (total 100,000 L), engineered for safe storage and easy handling. Suitable for solutions up to a density of 1.4 kg/dm3 (liquid fertilizers, molasses, brine…).

Key features

• Electrical cabinet with leak detector, level alarm and electronic gauge (prior installation required before commissioning)
• Four lifting points for easier handling
• Enhanced UV protection with higher resistance than standard polyethylene
• Leak detector with integrated alarm
• Rigid inner wall structure
• Audible level alarm
• Filling accessible at standing height
• Protection against rodents and vandalism
• Valves available in 3” and 2”
• Suitable for storing high-density solutions
• Welded seams ensure tightness and strength

Technical dataHeight (m): 5.100
Width (m): 5.96
Depth (m): 2.98
Weight (kg): 3600
Key: C
Capacity (L): 100000

Specifications / technical characteristics

• Height: 5.100 m
• Width: 5.96 m
• Depth: 2.98 m
• Weight: 3600 kg
• Key: C
• Capacity: 100000 L
• Max. stored liquid density: 1.4 Kg/dm3
• Internal reference: DPR100000
